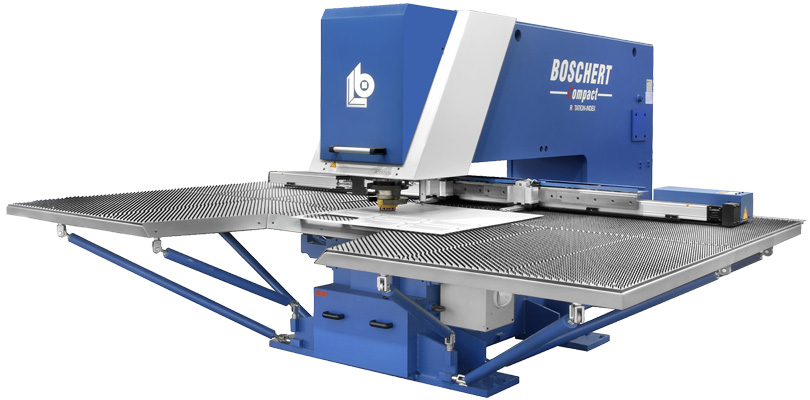

Makes complex parts a breeze
Stepless 360 degree rotation of all tools up to 105 mm diameter using brushless DC motors and pneumatic indexing of Revotools. The 7-way Revotool was especially constructed for this model. In addition to 6 tools with a diameter of 16 mm each, with a slitting tool of 5 x 30 mm it is possible to punch nearly every contour, allowing complete processing of the sheet without changing tools.
More components of the Compact
- An L-sheet is provided with all machines for working very small pieces and pre-bent parts. (Standard)
- The automatic tool lubrication serves to increase tool life when nibbling stainless steel (VA) and decreases edge burrs in aluminium
- Repositioning up to 10 meters and clamp movement without contacting the sheet. 2 robust clamps for sheets up to 200 kg (expandable to 4 clamps). Standard capacitiy up to 7 mm or 12,7 mm when required. (Standard)
- Sandblasted, corrosion resistant surface as standard. Balls in the table for heavier sheets and easy handling, brushes in the table for thin or scratch sensitive sheets are also available.
- Vacuum slug removal
- CNC/CAD software to import DXF-files into machine language, calculated punch time, graphic simulation
- Nibbling up to 800 strokes / min with integrated oil cooling
- Programmable repositioning of the clamps for faster set up of the machine.
- Tapping and drilling attachment for threads M3 up to M12 and smaller drilled holes in thicker sheets.
- Marking apparatus for marking parts in 10 different fonts.
| Working Range | |
| Compact 750 x 2000 | 810 x 2080 mm |
| Compact 1000 x 2000 | 1060 x 2080 mm |
| Compact 1250 x 2000 | 1310 x 2080 mm |
| Performance | |
| Max. sheet thickness | 12.7 mm clamp opening / Revotool 6 mm |
| Max. sheet length | 9999 mm by repositioning |
| Max. hydraulic punching power | 280 kN (optional 400 kN) |
| Max. workpiece weight | 200 kg |
| Speeds | |
| Max. positioning speed X-axis | 60 m/min |
| Max. positioning speed Y-axis | 30 m/min |
| Simultaneous X & Y | 67 m/min |
| Max. stroke standard hydraulic | 250 strokes/min |
| Max. stroke fast hydraulic | 800 strokes/min |
| Tools | |
| Trumpf tooling system | |
| Max. punching diameter | 105 mm or any shape within 105 mm |
| Revotool | 4 / 6 / 7 / 8 stations |
| Tool changing time | 2 – 4 sec. Revotool 15 sec. manual |
| Axes accuracy during punching process | |
| Positioning accuracy | ± 0.10 mm |
| Repeatability | ± 0.03 mm |
| Space requirement and weights | |
| Compact 750 x 2000 Weight |
4050 x 4000 x 2110 mm 7400 kg |
| Compact 1000 x 2000 weight |
4050 x 4500 x 2110 mm 9200 kg |
| Compact 1250 x 2500 weight |
4050 x 5000 x 2110 mm 10500 kg |
| Electrical values | standard hydr. / fast hydr. |
| Electrical connecting value | 20 / 25 kVA |
| Hydraulic motor | 4.8 /11 kW |
| Electrical consumption 2 mm sheet thickness continuous operation | 4.9 /7.7 kW/h |
| Electrical consumption 4 mm sheet thickness continuous operation | 5.4 / 8.75 kW/h |
| Required fuse | 3 x 25 A / 3 x 35 A |
| Pneumatic connecting value | min. 4 bar |
| Hydraulic oil | 115 / 160 litre |
| Options | |
| Milling unit | |
| Drilling and thread cutting unit | |
| Automatic clamp positioning | |
| Robotic loading |
