The cost entry into CNC punching without sacrificing quality

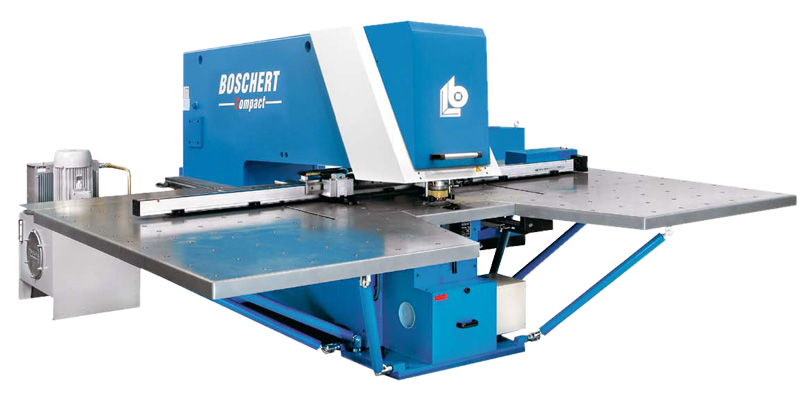

The COMPACT punching machine from Boschert is the perfect machine for the first-time user of CNC punching technology.
Advantages:
User-friendly graphic programming, high quality with low cost, small floor space requirements.
Extremely flexible:
Heavy-duty C-frame construction allows working of oversized sheets, by using turning and automatic repositioning function.
The COMPACT from Boschert represents over 50 years experience in building high quality sheet metal machinery.
More components of the Compact
- An L-sheet is provided with all machines for working very small pieces and pre-bent parts. (Standard).
- The automatic tool lubrication serves to increase tool life when nibbling stainless steel (VA) and decreases edge burrs in aluminium.
- Repositioning up to 10 meters and clamp movement without contacting the sheet. 2 robust clamps for sheets up to 200 kg (expandable to 4 clamps). Standard capacitiy up to 7 mm or 12,7 mm when required. (Standard).
- Sandblasted, corrosion resistant surface as standard. Balls in the table for heavier sheets and easy handling, brushes in the table for thin or scratch sensitive sheets are also available.
- Vacuum slug removal.
- CNC/CAD software to import DXF-files into machine language, calculated punch time, graphic simulation.
- Nibbling up to 800 strokes / min with integrated oil cooling.
- Programmable repositioning of the clamps for faster set up of the machine.
- Tapping and drilling attachment for threads M3 up to M12 and smaller drilled holes in thicker sheets.
- Marking apparatus for marking parts in 10 different fonts.
| Working Range | |
| Compact 750 x 2000 | 810 x 2080 mm |
| Compact 1000 x 2000 | 1060 x 2080 mm |
| Compact 1250 x 2000 | 1310 x 2080 mm |
| Performance | |
| Max. sheet thickness | 12.7 mm clamp opening / Revotool 6 mm |
| Max. sheet length | 9999 mm by repositioning |
| Max. hydraulic punching power | 280 kN (optional 400 kN) |
| Max. workpiece weight | 200 kg |
| Speeds | |
| Max. positioning speed X-axis | 60 m/min |
| Max. positioning speed Y-axis | 30 m/min |
| Simultaneous X & Y | 67 m/min |
| Max. stroke standard hydraulic | 250 strokes/min |
| Max. stroke fast hydraulic | 800 strokes/min |
| Tools | |
| Trumpf tooling system | |
| Max. punching diameter | 105 mm or any shape within 105 mm |
| Revotool | 4 / 6 / 7 / 8 stations |
| Tool changing time | 2 – 4 sec. Revotool 15 sec. manual |
| Axes accuracy during punching process | |
| Positioning accuracy | ± 0.10 mm |
| Repeatability | ± 0.03 mm |
| Space requirement and weights | |
| Compact 750 x 2000 Weight |
4050 x 4000 x 2110 mm 7400 kg |
| Compact 1000 x 2000 weight |
4050 x 4500 x 2110 mm 9200 kg |
| Compact 1250 x 2500 weight |
4050 x 5000 x 2110 mm 10500 kg |
| Electrical values | standard hydr. / fast hydr. |
| Electrical connecting value | 20 / 25 kVA |
| Hydraulic motor | 4.8 /11 kW |
| Electrical consumption 2 mm sheet thickness continuous operation | 4.9 /7.7 kW/h |
| Electrical consumption 4 mm sheet thickness continuous operation | 5.4 / 8.75 kW/h |
| Required fuse | 3 x 25 A / 3 x 35 A |
| Pneumatic connecting value | min. 4 bar |
| Hydraulic oil | 115 / 160 litre |
| Options | |
| Milling unit | |
| Drilling and thread cutting unit | |
| Automatic clamp positioning | |
| Robotic loading |
