Rounding Machines RME
Ideal for thin materials!

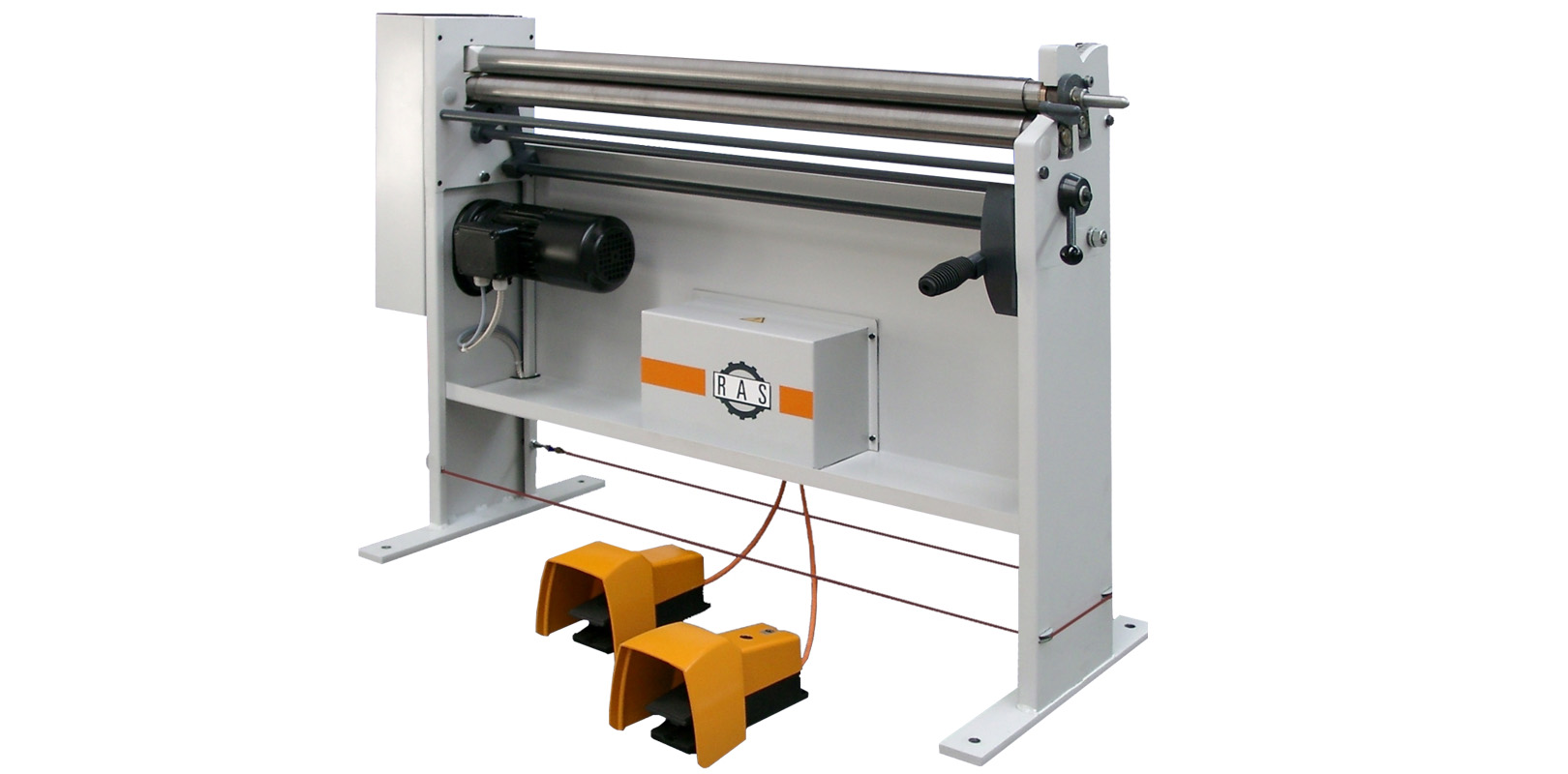

Three rolls offer best results on rounding light gauge materials. The drive is connected to a motor with 1-phase power supply (household plug). The variable speed can be adjusted from 0 to 12 m/min. A counter displays the rear roll rounding setting. The 2 pedal footswitch is used for forward or reverse motion. An all round ripcord meets the safety requirements. In order to achieve perfect curves, the rolls are crowned and optionally hardened.
| Ras RME52/103 | Ras RME52/128 | Ras RME60/103 | Ras RME60/128 | Ras RME70/153 | |
|---|---|---|---|---|---|
| Working Length | 1030 mm | 1280 mm | 1030 mm | 1280 mm | 1530 mm |
| Thickness max. | 1.1 mm | 0.9 mm | 1.5 mm | 1.2 mm | 1.2 mm |
| Roll diameter | 52 mm | 52 mm | 60 mm | 60 mm | 70 mm |
| Drive | Motor 230V, 1Ph | Motor 230V, 1Ph | Motor 230V, 1Ph | Motor 230V, 1Ph | Motor 230V, 1Ph |
| Number of rolls | 3 | 3 | 3 | 3 | 3 |
