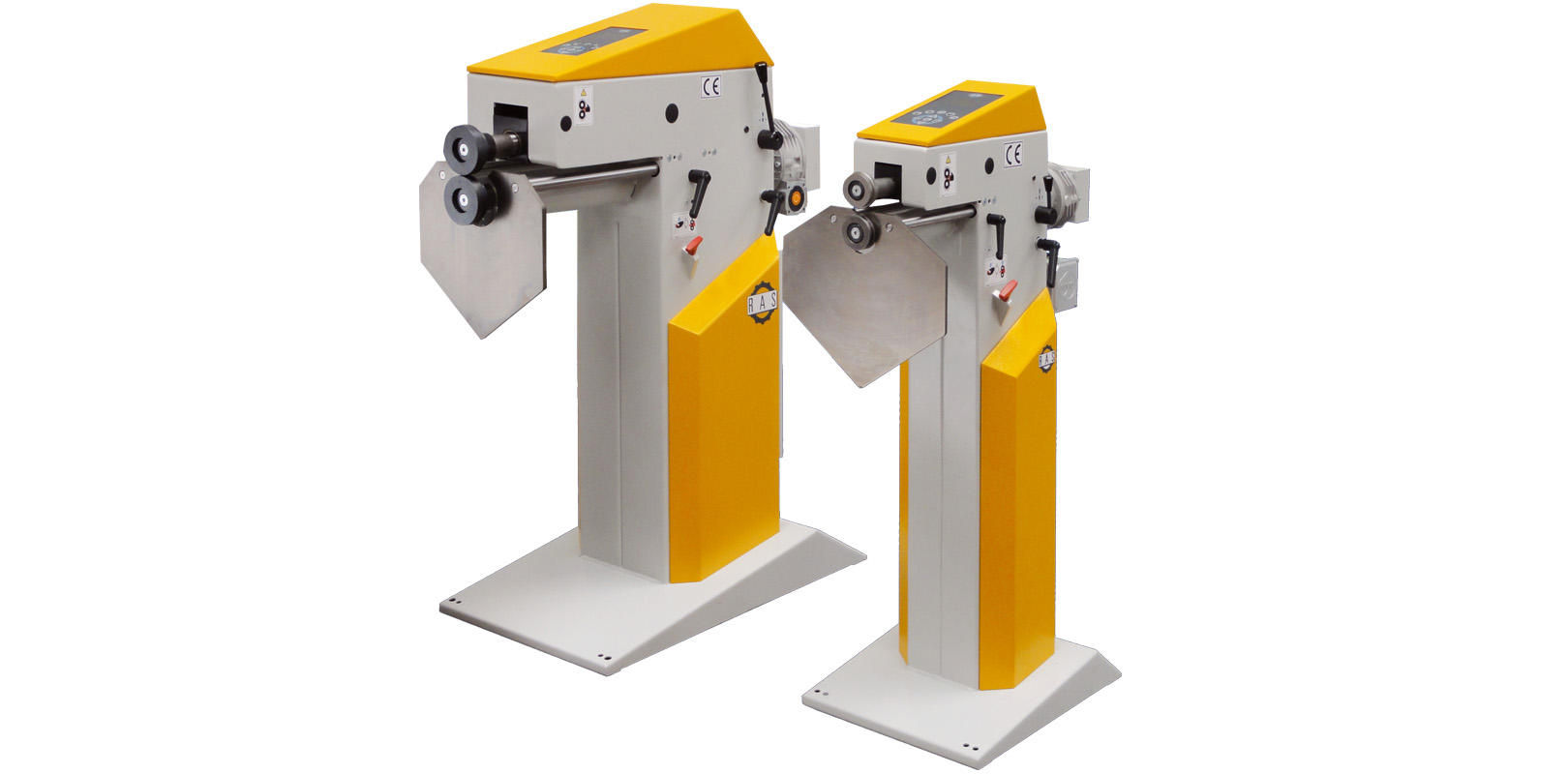

RAS EasyFormer

Category: Tag:

Intelligent Swaging Machine!

RAS introduces the EasyFormer, the second generation of intelligent swaging machines. They actually “learn” as you swage and flange!

When you’re ready to produce the first work piece, just press the “Teach” function. The glass panel touch control automatically memorizes when, and how you set the upper wheel or change the rotation of the wheels. When you insert the next work piece, the system automatically “clones” the entire operation.

The machine operator only has to lead the workpiece, and regulate its speed with the footswitch. The glass panel touch control stores up to ten programs, for use in the future.

The unique UnLock safety function meets the highest safety standards. If at risk, simply pull one of the UnLock levers left or right on the machine frame and the rolls open immediately.

Technical Data Ras EasyFormer 12.65-2 Ras EasyFormer 12.35-2
Center-to-center distance 100 mm 63 mm
Material thickness max. 3.0 mm 1.75 mm
Working Depth max. 400 mm 255 mm
Speed max. 20 m/min 28 m/min
Glass panel touch control incl. incl.
Learning Function incl. incl.
Right-left-run incl. incl.
Large divided stop plate incl. incl.
Unlock safety function incl. incl.
