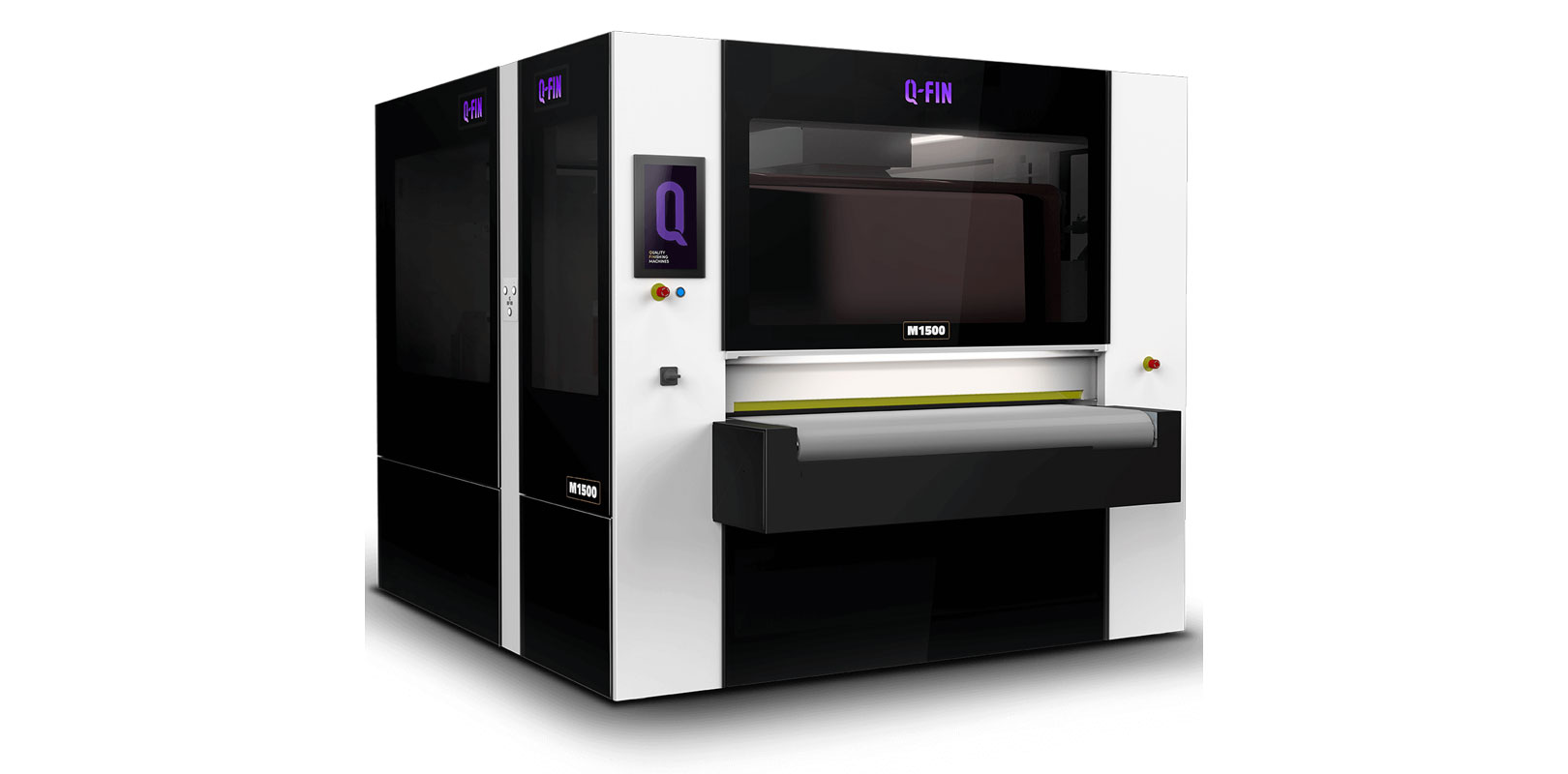

Q-Fin M1500 – Multibrush Finish Machine
Discover the innovative M1500 finish machine, equipped with an intuitive HMI touchscreen for effortless operation. This touchscreen enables operators to easily switch between various finish programs, ensuring high reproducibility of product quality and minimizing operational errors. Depending on the materials to be finished, choose a system with vacuum or magnetic product fixation.
Burrs and imperfections are removed by a grinding unit at the input side, resulting in a flat, burr-free surface. After grinding, the Multibrush circular brushes ensure that the product is perfectly finished. The six brushes provide a directionless finish and round the edges with a radius of 2+ mm, giving the product a high-quality and durable appearance.
The M1500 offers the possibility for full ERP control and seamless integration into automated production processes— in short, a finish machine that is ready for the future!
Unique benfits
- Unique multibrush system, stable grinding belt
- Ideal for foil-covered sheet metal parts
- Fully automatic adjustable stations
- Intuitive, multilingual HMI touchscreen
- Reproduce with adjustable programs
- Automatic brush calibration
- Possible with: Integration ERP & handling systems
Technical Data
- Conveyor belt speed – 0.3 – 10 m/min
- Product fixation – Vacuum or magnet system
- Minimum workpiece dimensions – 80 x 80 mm
- Maximum workpiece width – 1500 mm
- Maximum workpiece height – 110 mm
- Machine power supply – 400 V | 50 Hz | 50 A | 25 kW
- Dimensions (L x W x H) – 3425 x 2505 x 2320 mm
- Weight – 5,600 kg
