Swing Beam Shears Re-Invented!

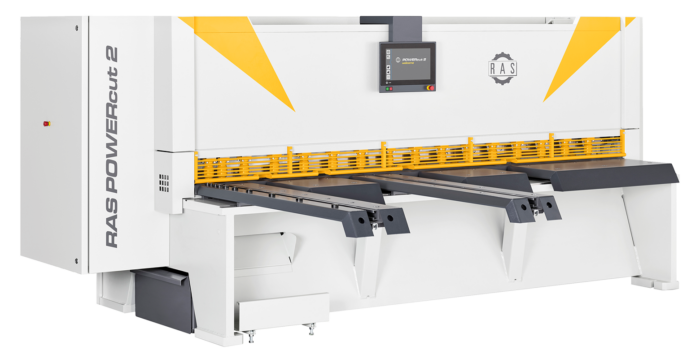

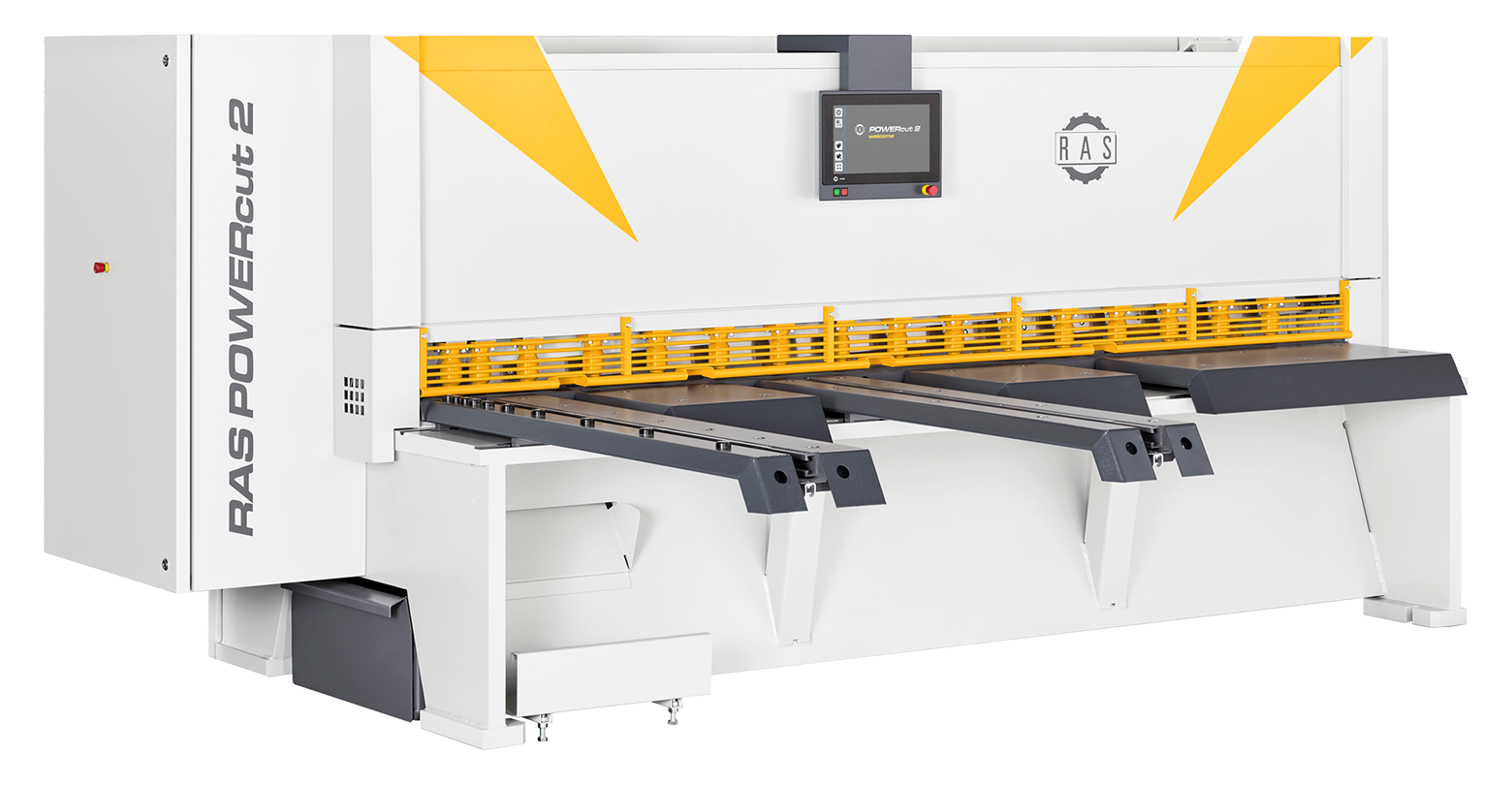

The second generation RAS POWERcut2 swing beam shears deliver twist-free, high precision and burr-free cuts with maximum dimensional accuracy. They ensure optimal material utilization and enable an optimum workflow.
Highlights!
- Swing beam cutting for accurate blank sizes and straight cuts
- Low rake angle for twist-free strips
- Large and clear 15 “touch monitor with new operating concept
- 3 Operating levels: Simple input mode for occasional users, Extended simple mode for more experienced users, Program mode for experts
- Sheet support system saves labor costs
- Fast automatic blade clearance adjustment for thickness and material
- Rapid stroke sequence and adjustable cutting length for high throughput
- Optimal material utilization through deep pockets
- Large shear tables with ball casters facilitate material handling
- Sorting of blanks during cutting (good parts, scrap, small parts)
- Long lifetime of the cutting blades
- LED-illuminated cutting area
Versatile Applications
- Normal sheets, perforated blanks, tread plates, wire mesh, spring steel …
- Steel, stainless steel, aluminum, copper …
- Galvanized, coated, anodized …
| RAS 86.43-2 | RAS 86.33-2 | |
|---|---|---|
| Cutting length | 4040 mm | 3190 mm |
| Material thickness max. | 5.0 mm | 6.3 mm |
| Backguage | 5 – 1000 mm (1500mm) | 5 – 1000 mm (1500mm) |
| Small parts chute | yes | yes |
| Automatic blade clearance adjustment | yes | yes |
