Sheetmetal Machinery Australia

Q-Fin edge rounding and deburring – Material handling and automation

Sheetmetalmachinery — Wed, 17 Apr 2024 00:23:36 +0000

Q-Fin supplies comprehensive automation and handling solutions to improve the performance of their deburring machines. The range includes (return) conveyor belts for a seamless material flow, robots for automated precision handling and a versatile reversing unit to optimize the workflow. These solutions are designed to streamline the deburring process, improve efficiency and reduce labor costs. Whether you’re working with steel, aluminum or stainless steel plates, our handling solutions ensure consistent, high-quality results and make Q-Fin the ideal choice for your metal component deburring needs.

Robots – Fully automatic loading and/or unloading.

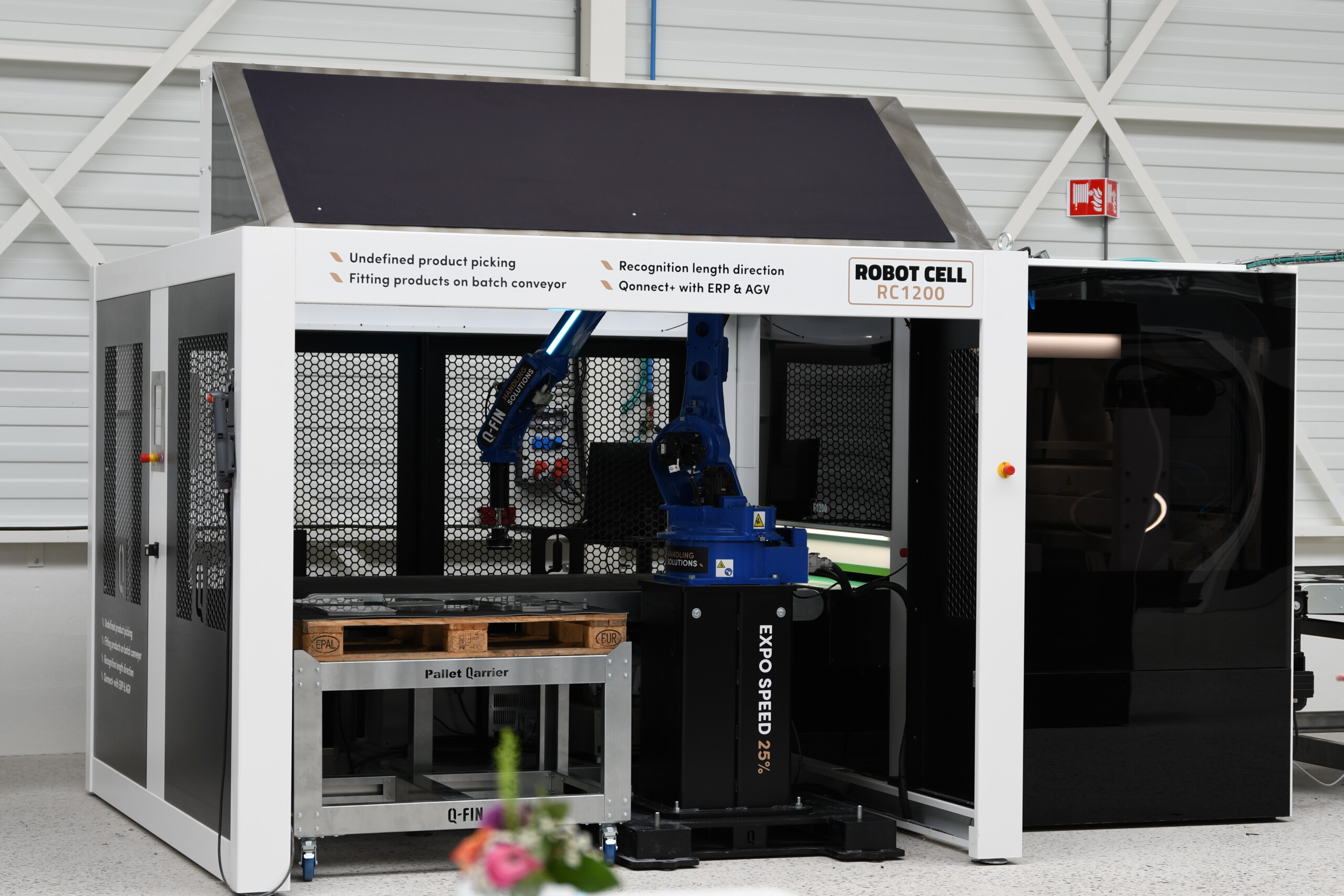

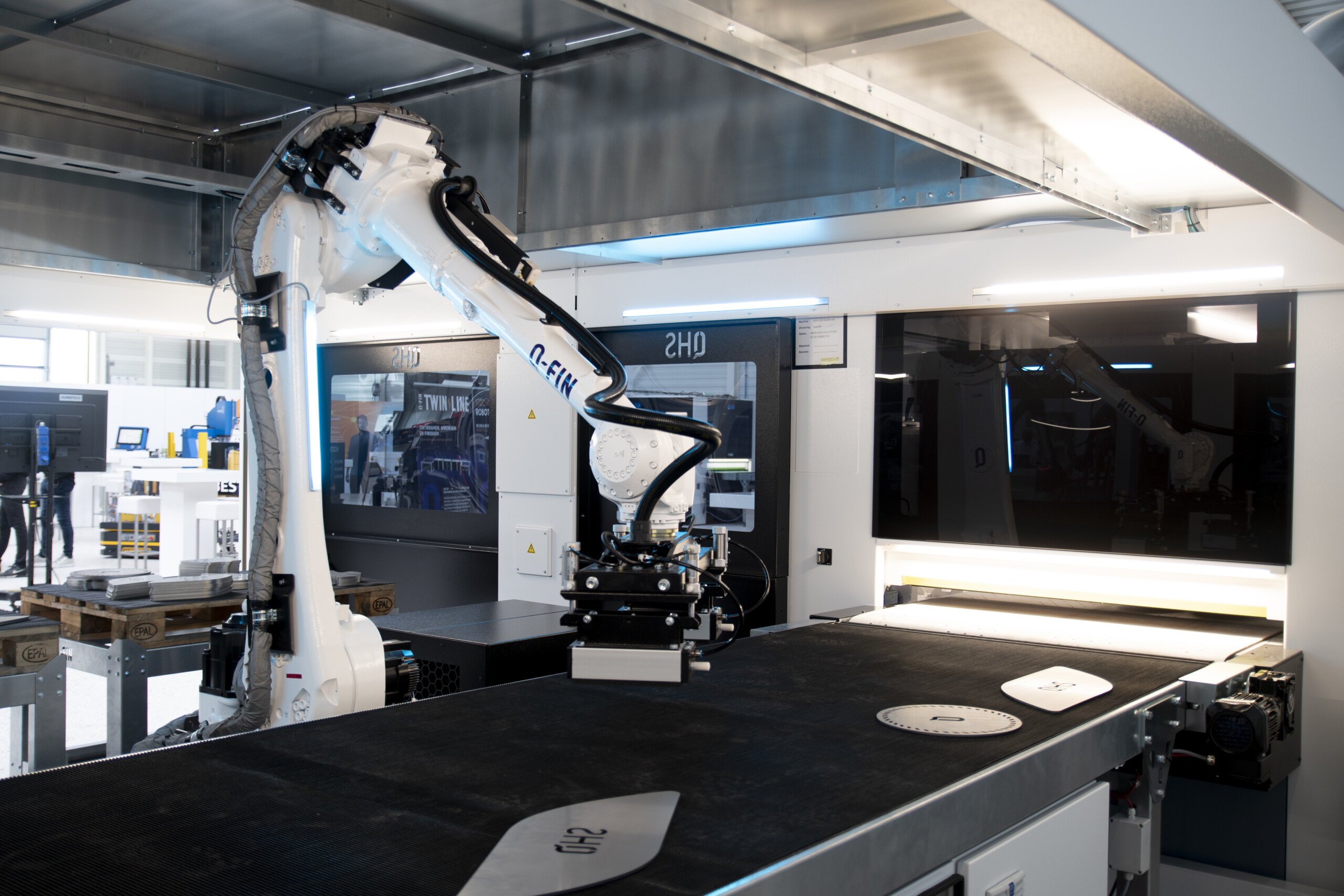

The RC1200 Robot Cell revolutionizes your workflow by automating the loading and unloading of sheet metal parts. Experience increased efficiency, reduced labor costs and improved safety with seamless, fully automatic operations.

Our RC1200 Robot Cell has advanced features including a 3D vision camera for accurate product recognition. Its flexible gripper offers both vacuum and magnetic attachment options for versatile handling. In addition, our robots are fully controllable via an API connection, which ensures seamless integration into your automated processes. Increase your production capabilities today with the RC1200.

Transportation – Work in Batches

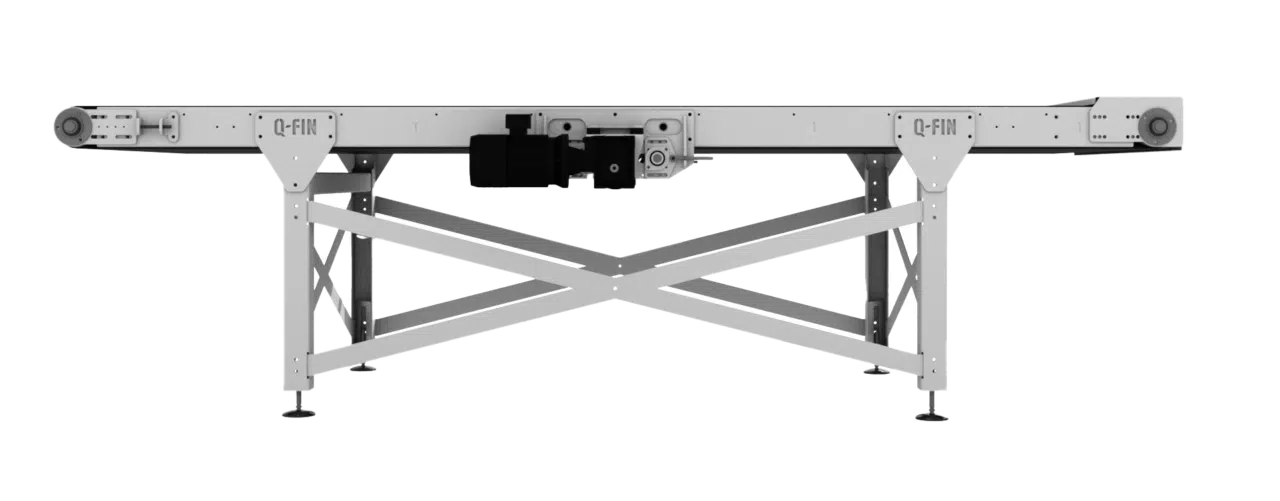

Q-Fin conveyor belts offer optimal convenience for operators. By using the transport solutions, processing large batches is a lot easier. In addition, it is also possible to use our return belts, so that only one operator can operate the machine.

Q-Fin conveyor belts are made with a robust mobile construction and the throughput speed is infinitely adjustable.

The post Q-Fin edge rounding and deburring – Material handling and automation appeared first on Sheetmetal Machinery Australia.

New Automation Software Platform For SafanDarley Press Brakes: ASC-Control

Sheetmetalmachinery — Tue, 03 Oct 2023 00:40:11 +0000

New software platform:
ASC-Control

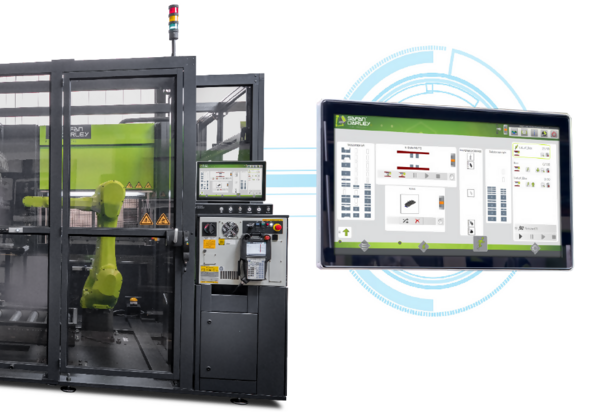

SafanDarley proudly presents the fully in-house developed software platform ASC-Control (Automated Solution Cell). This provides SafanDarley with a perfect software platform that enables all further developments with and around the electric E-Brakes and the hydraulic H-Brakes. Together with AutoPOL and RoboBend (offline software), ASC-control enables SafanDarley to offer a total package for all automated solutions. As a result, customers are no longer dependent on third parties and have only one point of contact for the entire package.

High priority on ease of use

In developing the new software platform, high priority was given to ease of use. An extensive training programme is therefore not necessary for the operator. After sending a job to the ASC-Control, he can easily operate the machine and execute the job. This allows the operator to work efficiently and increases the productivity of the automated cell.

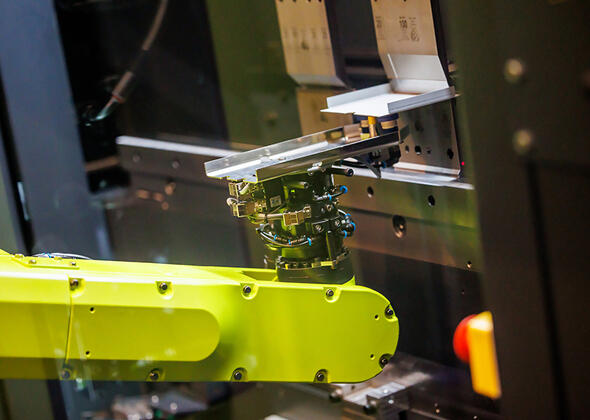

How this works was shown at the E-volution days 2023 using an E-Brake 35T Premium Mini Cell with palletiser and AGV. This is a cell for fully automated production of small complex products. It also allows successive bending of different products without intermediate programming. The cell is modularly built and can therefore be configured entirely according to the customer’s wishes, thus achieving optimum efficiency and higher productivity.

Basis for further development

“Now that ASC-Control is available, it provides a huge step forward in terms of ease of use, efficiency and productivity. And it lays a nice foundation for SafanDarley to develop on,” says Gert Dekker (CE0).
In fact, only phase 1 of ASC-Control has been completed, the main outcome being that a customer can now run its robotic press brake cell independently. “In the next phases, we will go one step further each time,” Dekker explains. “We are thinking about working with multiple robots in the cell, other brands of robots and various solutions for the supply and removal of materials and products”.

The post New Automation Software Platform For SafanDarley Press Brakes: ASC-Control appeared first on Sheetmetal Machinery Australia.

Nukon Fiber lasers with nLIGHT “CUTLINE” Technology

Sheetmetalmachinery — Wed, 09 Aug 2023 00:52:54 +0000

nLIGHT Fiber Lasers with “CUTLINE” Technology

Nukon lasers are equipped with state-of-the-art nLIGHT fiber laser power supplies. The nLIGHT unit has some great advantages over other power sources.

Cutline – nLIGHT’s own all-fiber beamforming technology
Excellent back reflection protection
Quality North American production

Cutline – Beamforming Technology

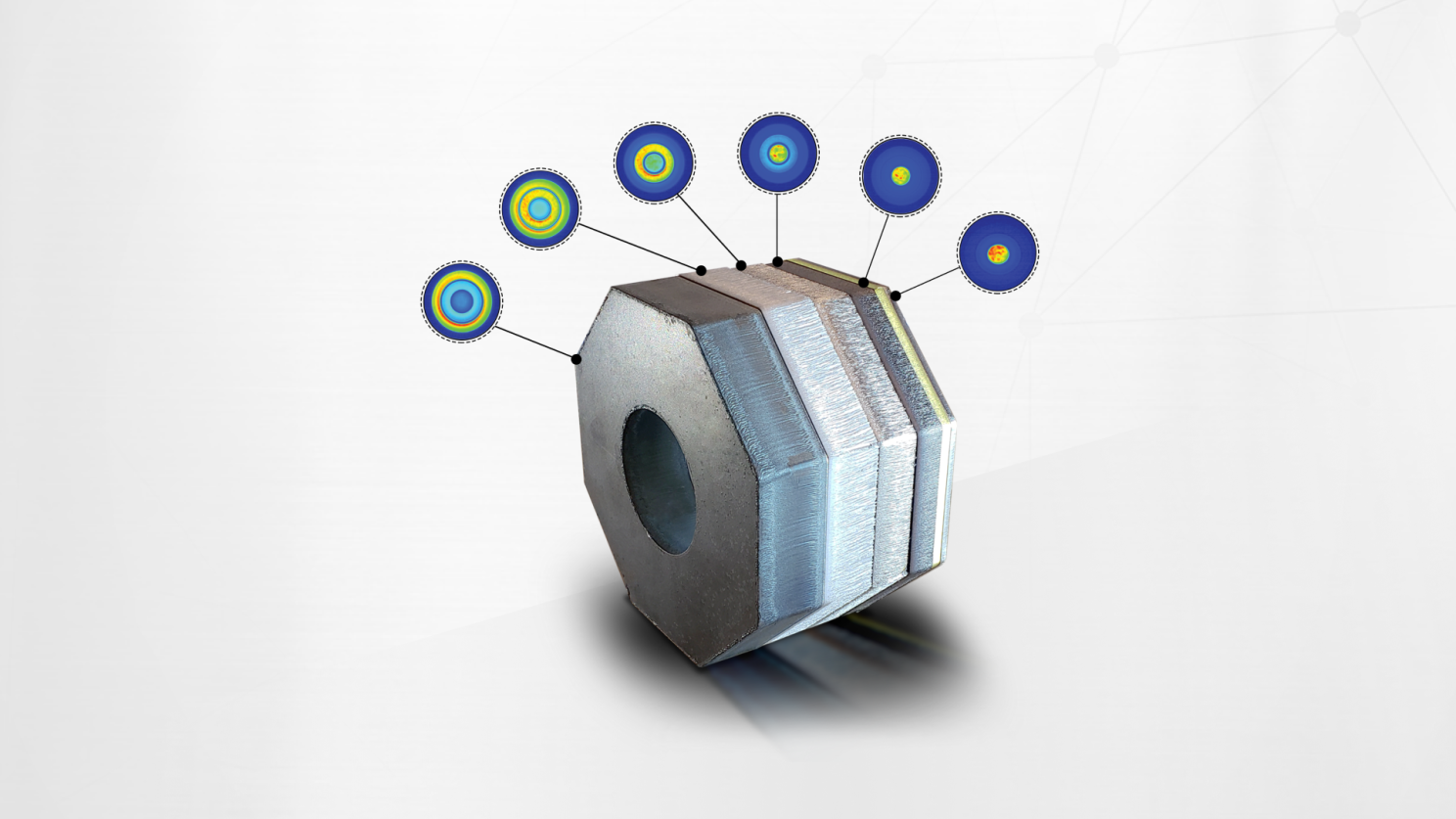

nLIGHT CutLine lasers provide unmatched versatility by adjusting the size and shape of the output beam within the full power fiber. Depending on the applications, different options can be used, from small-diameter peaked beams to large-diameter annular beams, without the cost, complexity, or reliability issues typically associated with conventional optics. CutLine users can achieve superior thickness metal cutting of CO2 lasers while taking advantage of the speed and cost advantages of traditional fiber lasers.

Back Reflection Protection
Older generation fiber lasers often use software isolation to turn off the laser if backscatter is detected. This solution requires a reset of the system and this system may not always be fast enough to ensure that the laser is completely protected from damage. nLIGHT’s hardware isolation converts the reflected power into heat before it can damage the laser, keeping your process running, reducing processing time and saving you expensive repairs.

North American Design and Manufacture
Based in Vancouver, Washington, nLIGHT has been innovating in laser semiconductors for over 20 years. They are recognized as a leader in technology and performance in the laser industry. nLIGHT’s semiconductor lasers are the brightest in the industry and operate at unique wavelengths and power combinations.

nLIGHT’s high power fiber lasers offer significant advantages over previous generation fiber lasers in terms of programmability, serviceability and reliability.

Contact us to achieve higher quality results on cutting surfaces compared to standard cuts with Nukon cutline technology. ????

The post Nukon Fiber lasers with nLIGHT “CUTLINE” Technology appeared first on Sheetmetal Machinery Australia.

May Open House

Sheetmetalmachinery — Mon, 02 May 2022 22:52:11 +0000

Wednesday 18th – Friday 20th May 2022

Join us for demonstrations, lunch and drinks.

Machines from the most innovative CNC machine tool manufacturers worldwide.

Learn how you can increase your production efficiency and throughput all whilst minimising labour. At Sheetmetal Machinery Australia we are proud to offer the latest technology to help you achieve your full potential.

Time: 10.00am to 4.00pm
Where: 46/756 Burwood, Highway Ferntree Gully VIC 3156

Machines on demonstration

EvoBend D600
The next generation of long length folding machines. Ideal for metal contractors, roofers and facade builders.

Q-Fin Ultimate Set
Deburring, edge rounding and finishing machines The ultimate solution for finishing metal parts.

SafanDarley 130-4100 Electric Press brake
The worlds largest range of electric press brakes including automated robot systems, tool change systems and offline software.

Available stock used machines
RAS Flexibend 71.30 panel folder
Krasser Legionnaire cut to length slitter

Please register your details by contacting us on 03 9758 9377 or email us on sales@sheetmetalmachinery.com.au.

Click here to Register

The post May Open House appeared first on Sheetmetal Machinery Australia.

AutoPOL Offline programming for press brakes with laser angle measurement

Sheetmetalmachinery — Tue, 17 Aug 2021 23:06:10 +0000

A quick look at how to program Laser Angle Measurement with AutoPOL BendSim

The post AutoPOL Offline programming for press brakes with laser angle measurement appeared first on Sheetmetal Machinery Australia.

Comparison: Folding & Press Brakes

Sheetmetalmachinery — Fri, 19 Jul 2019 00:16:35 +0000

Frequently changing parts and small batch sizes require a universal bending technology. The most common bending technology are press brake bending and folding. Below we will look at the differences.

Folding: Bending Sequence

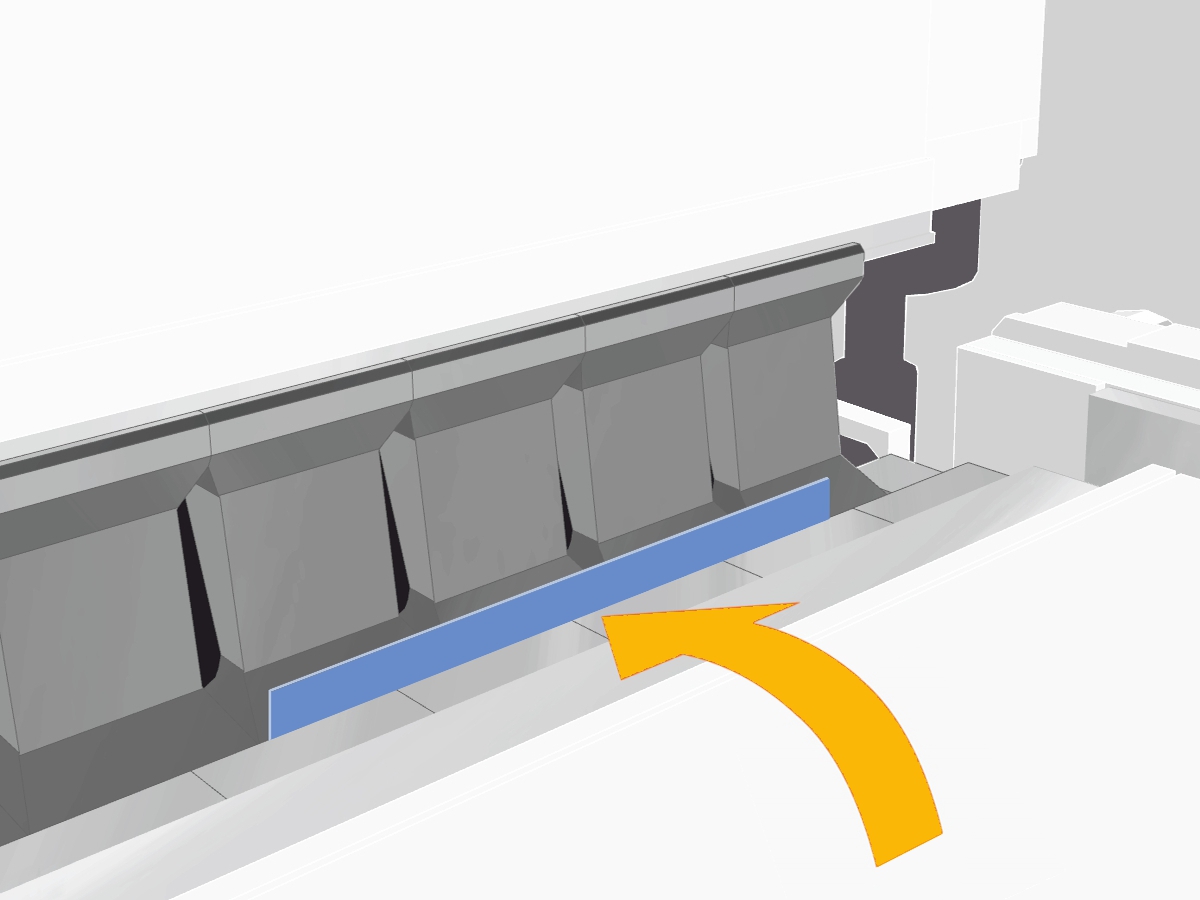

During the folding sequence the blank rests on the sheet support table. A gauging system positions the part to the bend line. The upper and lower beam clamp the blank. During the bending cycle the folding beam moves up around a pivot point. On up-down acting machines, the folding beam moves upwards or downwards, depending on the bending direction.

The part rests on the table (no fatigue, short cycle times)

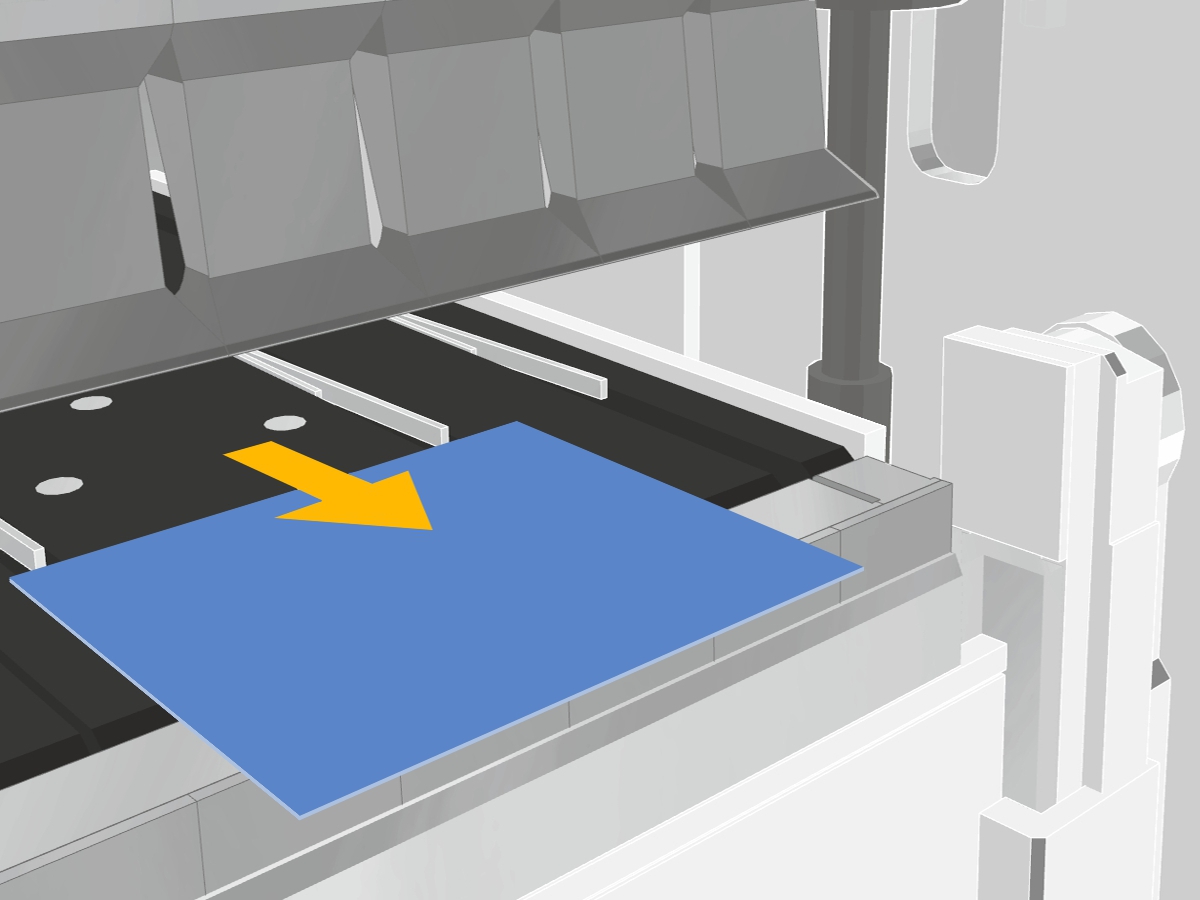

The gauging system positions the part to the bend line (operator training finished in no-time)
Upright posture, easy operation (no health problems)
Usually one operator is sufficient even for large, cumbersome and heavy parts (low labor/parts costs)

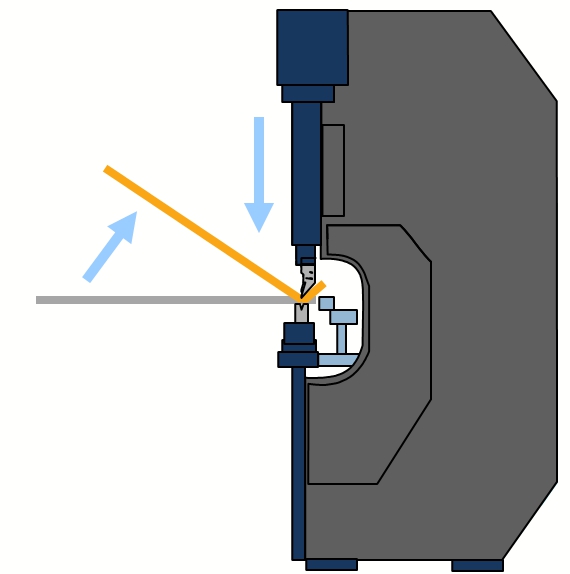

Press Brake: Bending Sequence

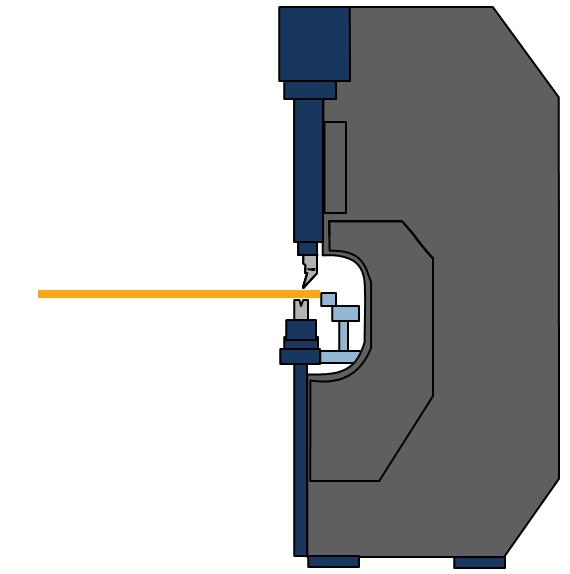

During the bending sequence the blank is positioned outside the machine. The operator holds and supports the weight of the blank. For bending the upper ram moves down into the lower die. Both sides of the part move up and leave the plane. A linear ram movement results in the bend angle. Sequence requires experienced operators.

Operator needs to lift/support/hold the part (quality problems due to fatigue)
Experienced, well trained operator required (problem finding skilled operators)
Health (shoulder problems) and safety are critical

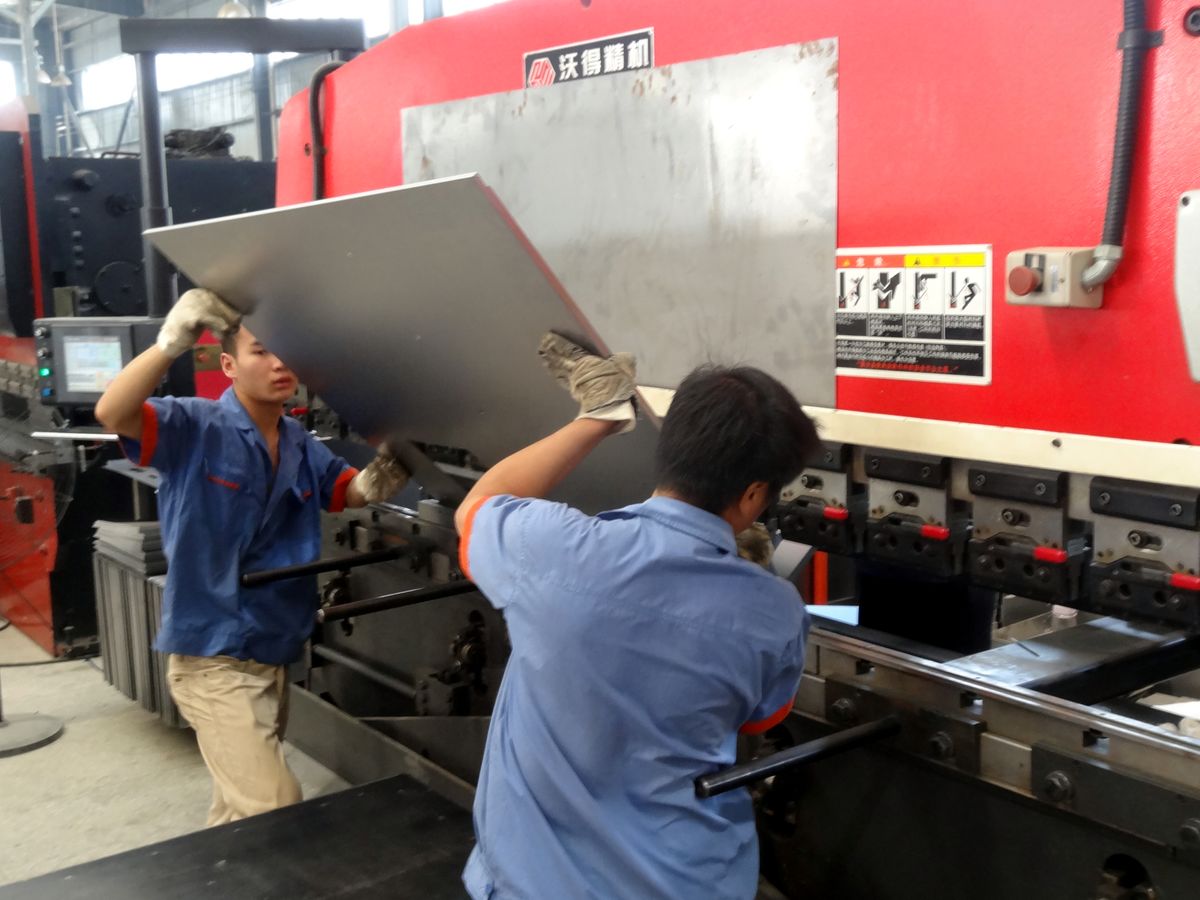

Large/cumbersome or heavy parts require multiple operators (high costs per part)
Slow cycle times (high costs per part)

Folding: Machine Setup

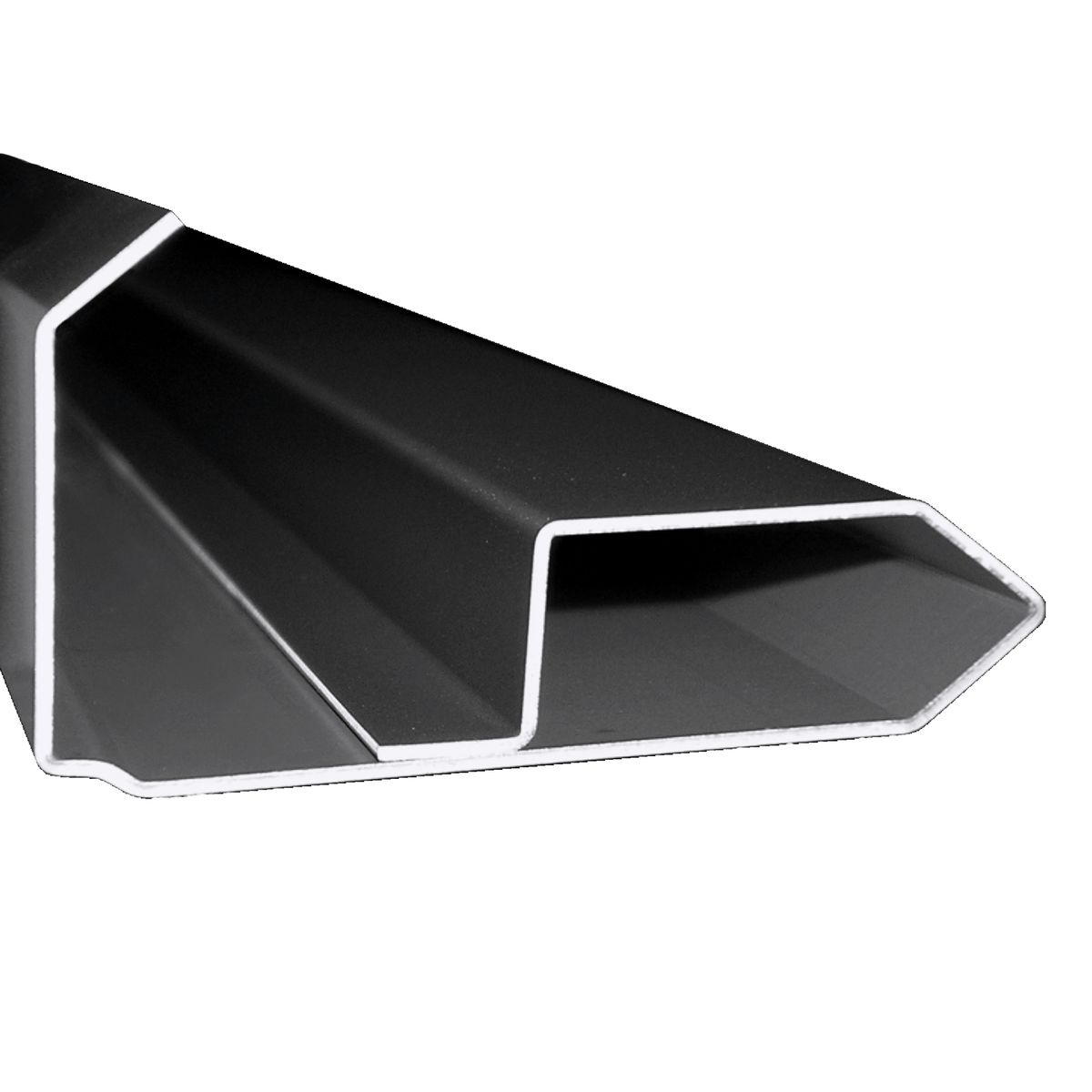

Folding machines can bend all angles with a single set of tools. The machine automatically adjusts to the material thickness. Higher automated folding machines come with an automatic tool changer.

Universal tools (reduced setup effort)
Usually one set of tools sufficient for all customer parts
Low investment and operating costs
Low set-up times allow for small batch sizes (need-based production)

Press Brake: Machine Setup

Press brake bending typically requires a large number of punches and different applications.

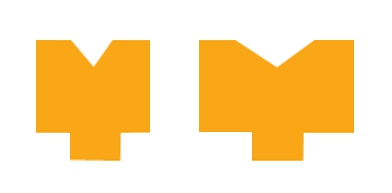

Different “V” dies for different sheet thicknesses
Small “V” dies required for short flanges
Usually a large variety of upper ram geometries are used
Investment in additional tools over time
Often long set-up times

Folding: Material thickness tolerances

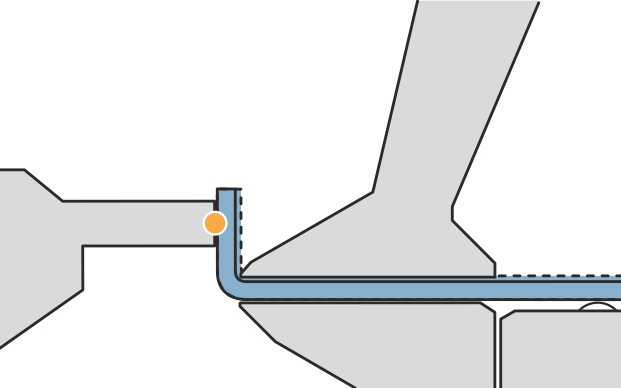

During the folding sequence the folding beam tool contacts the outside of the material and moves exactly to the programmed angle.

The reference side is only the outside of the material
Exact movement to the programmed angle (high angle accuracy)
Sheet thickness tolerances do not affect the bend angle
No angle measuring system required

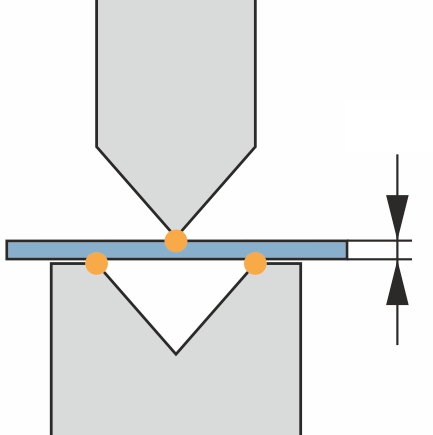

Press brake: Material thickness tolerances

On press brakes, the punch contacts the material from above and the “V” die from below.

Contact points on both sides of the material
The bend angle iresults from a linear upper tool movement
Sheet thickness tolerances lead to angle variances
Expensive, inflexible angle measuring system required for compensation

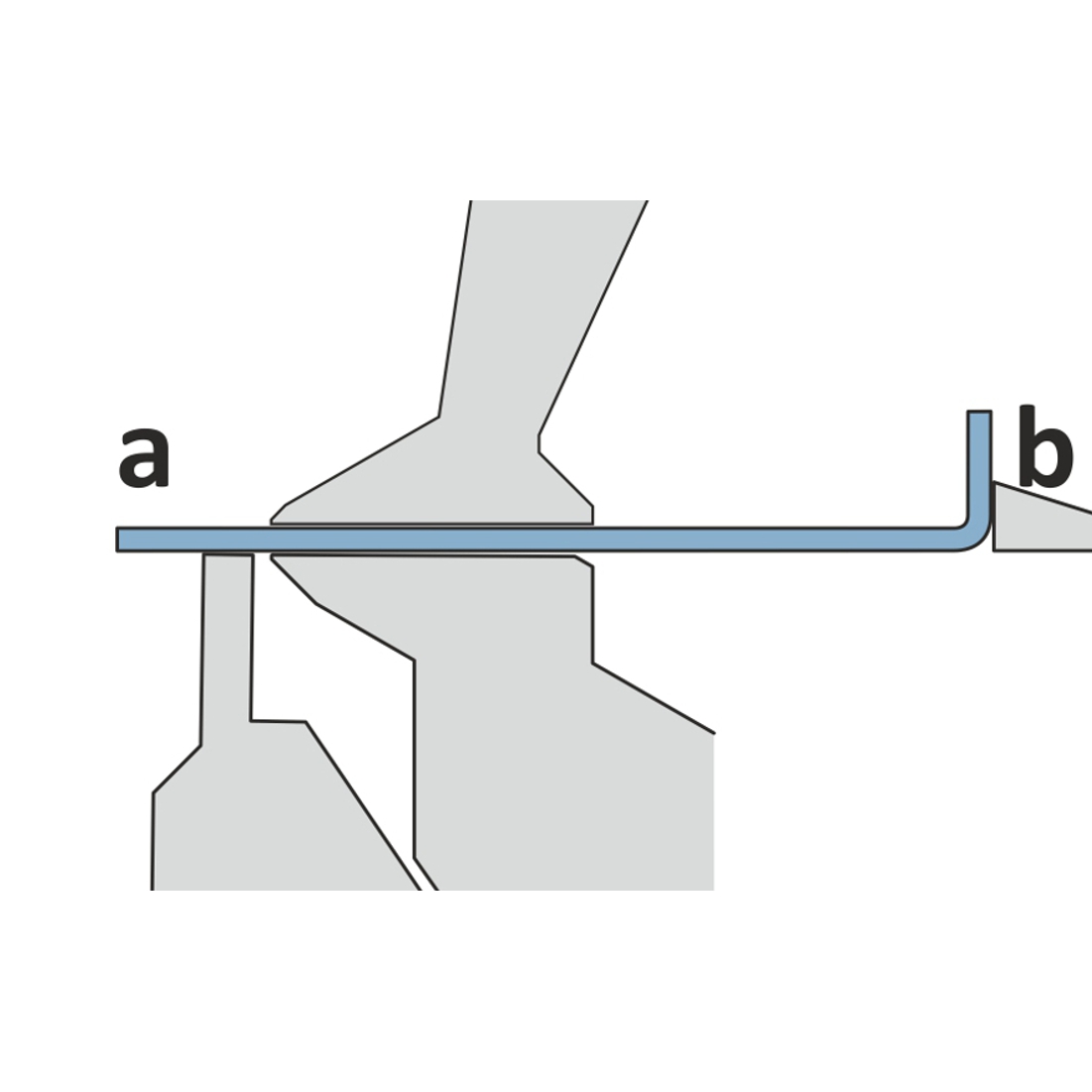

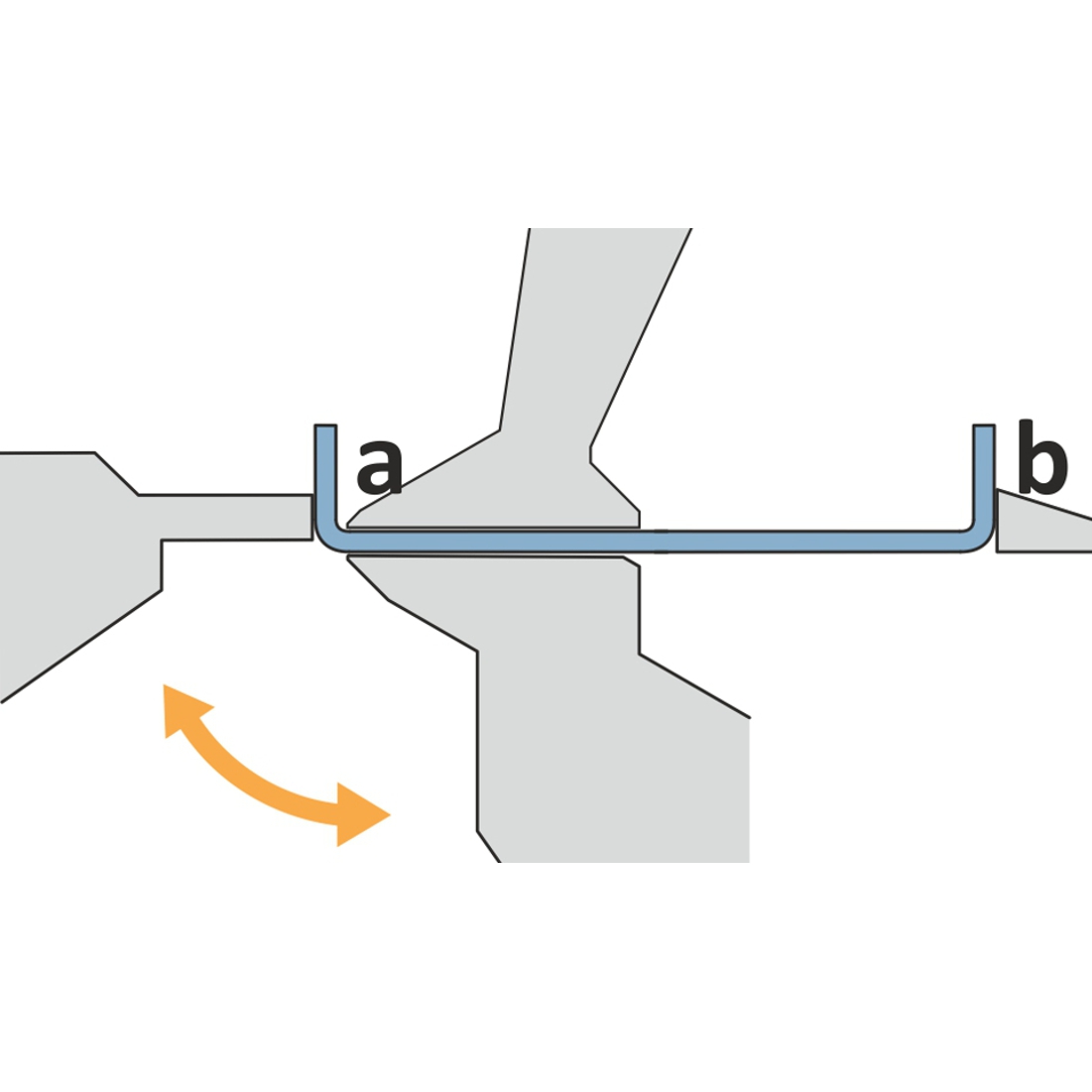

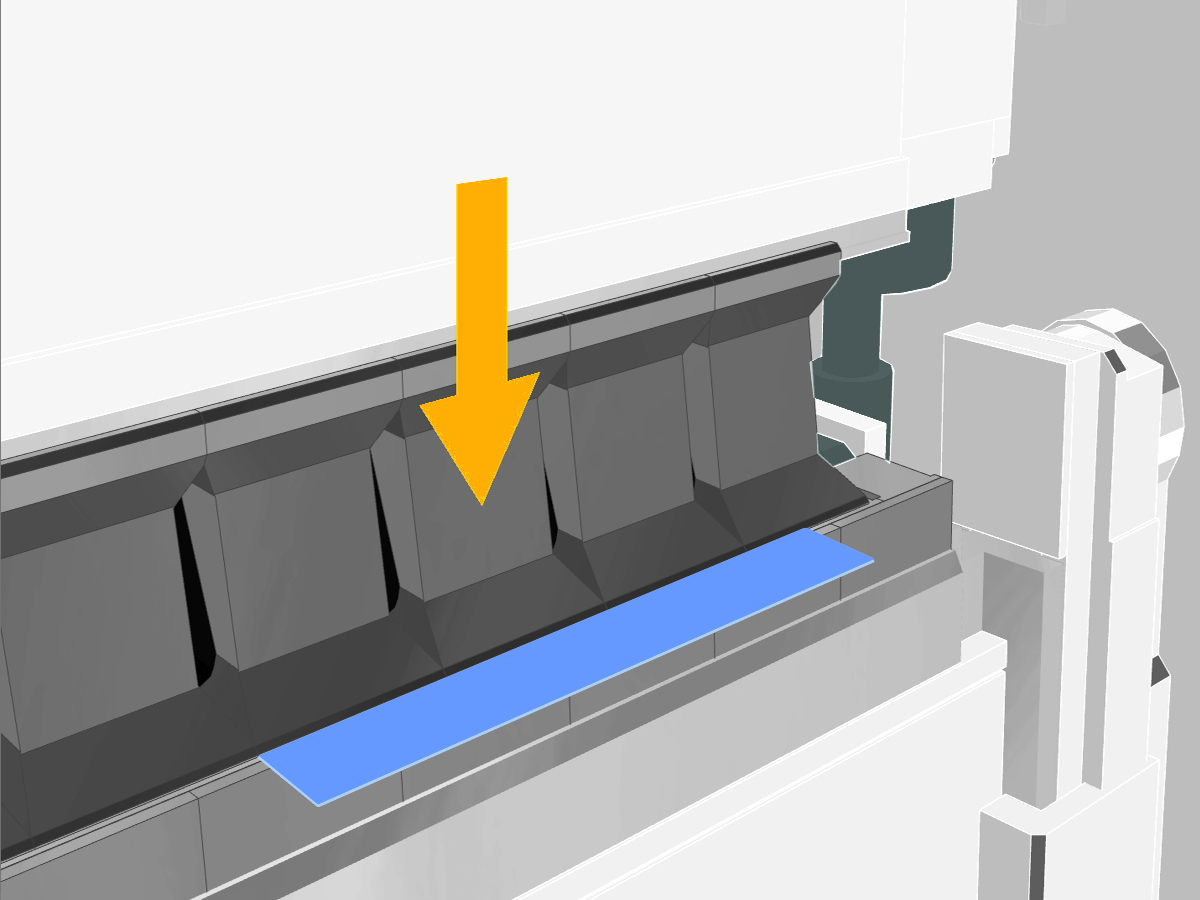

Folding: Gauging

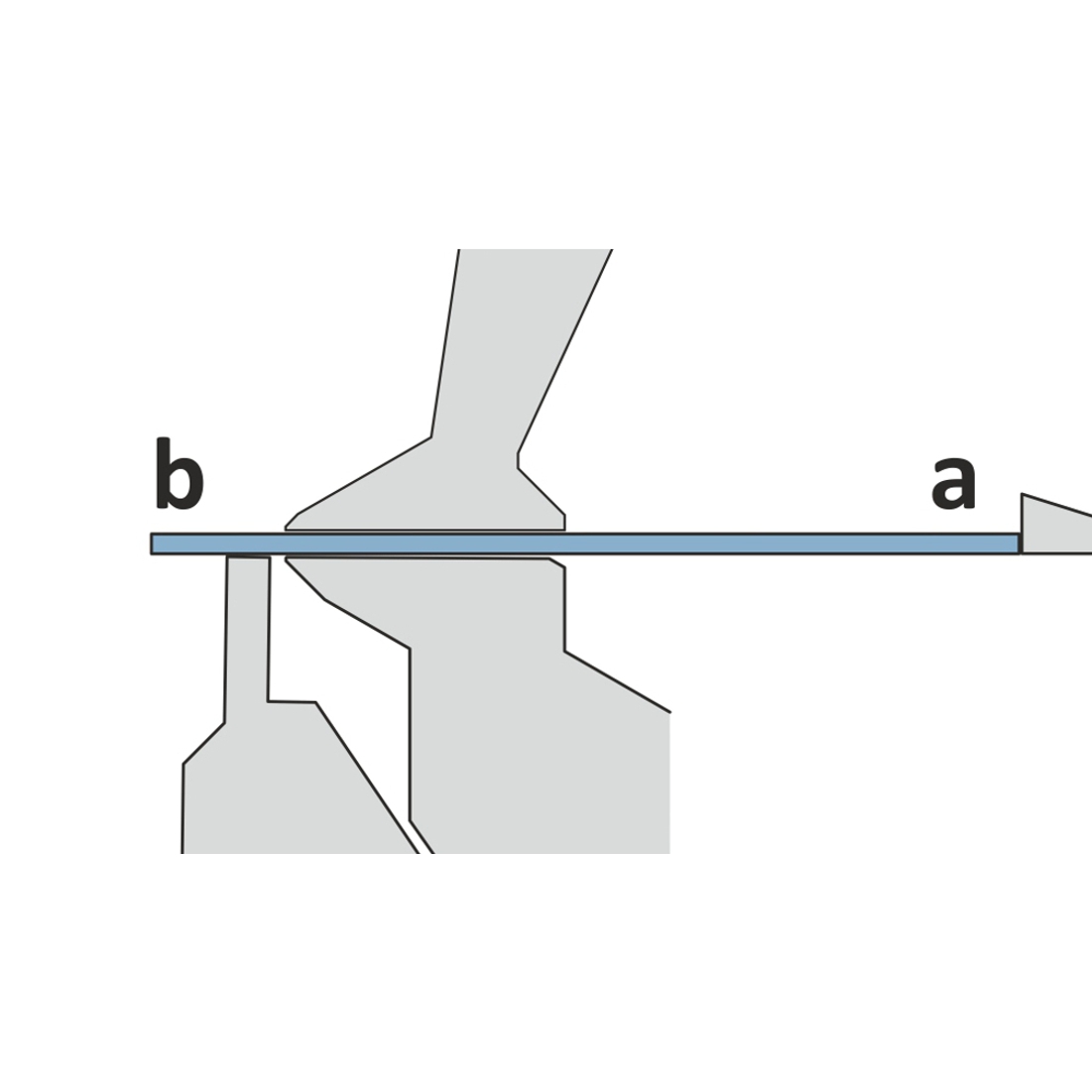

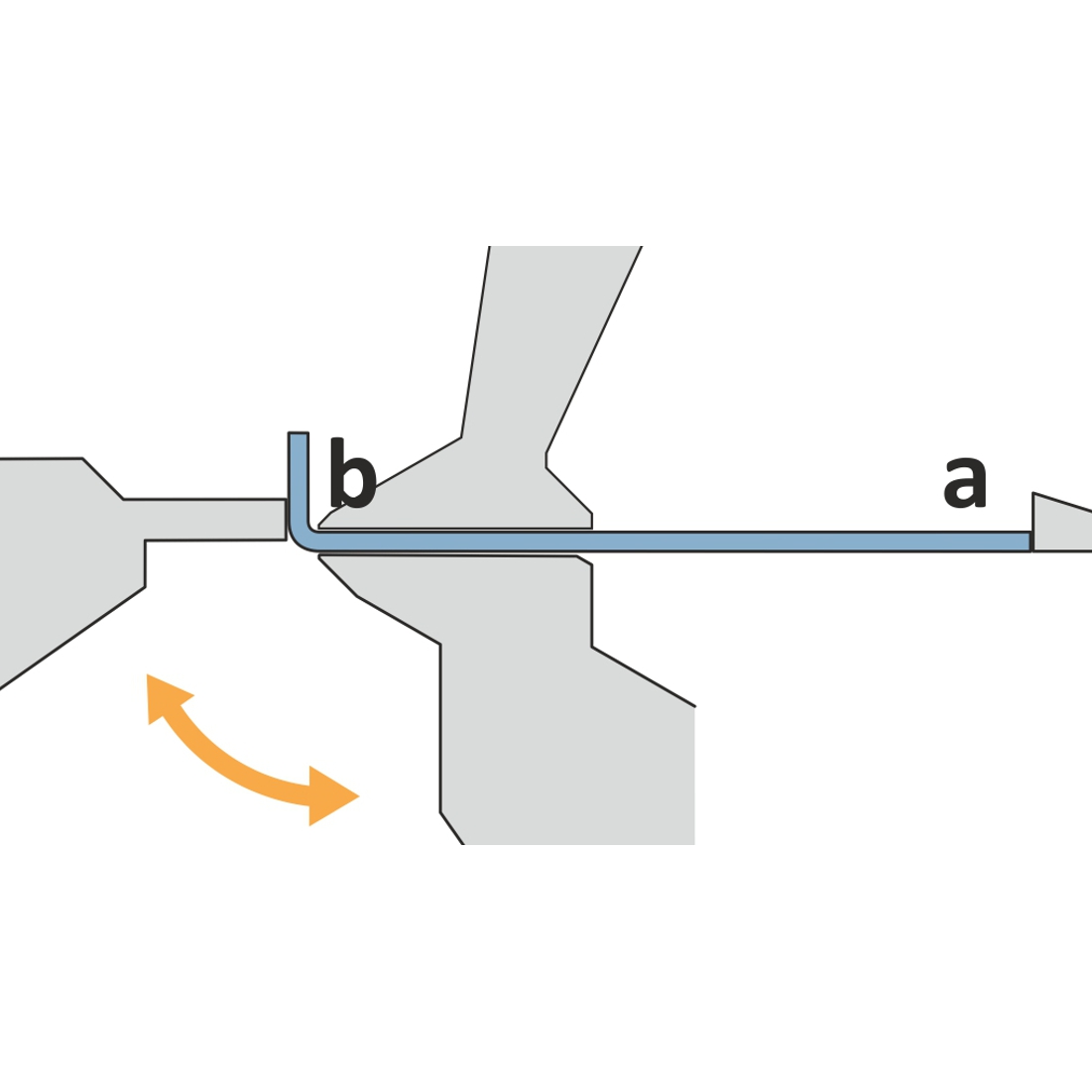

On a folding machine the entire part is inside the machine. Only a short flange stands out of the upper and lower beam tool.

Gauging of the entire part

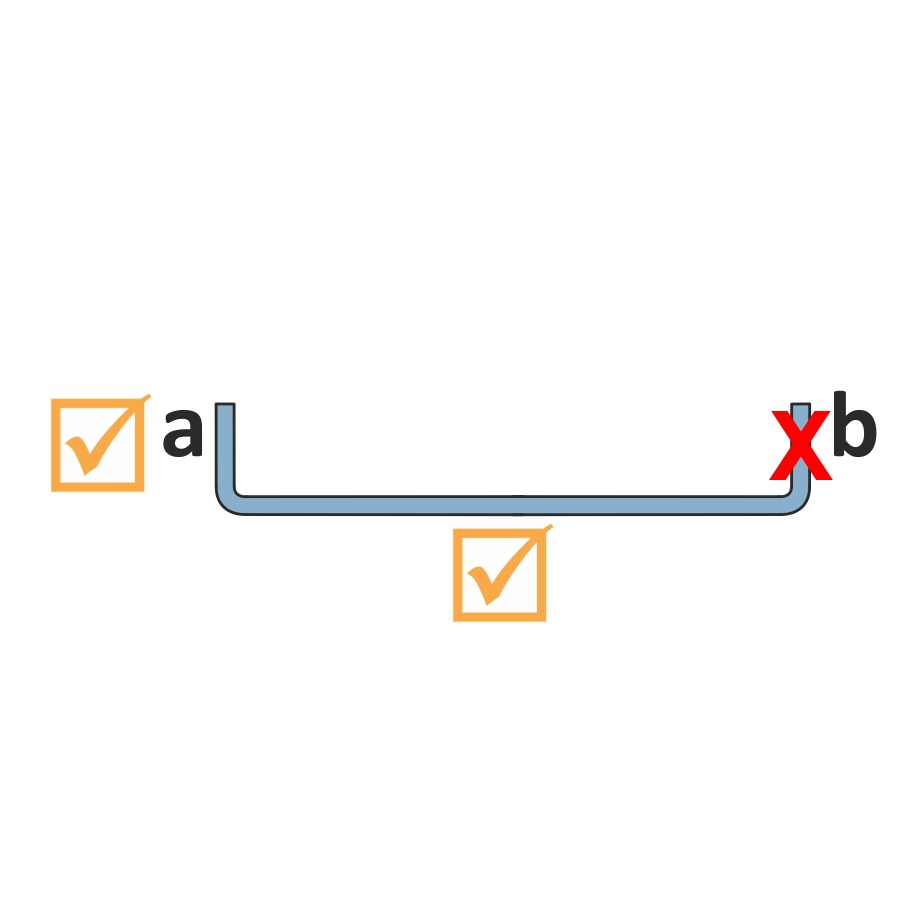

Blanks dimension tolerances show up in the first flange
The overall panel dimension as well as the opposite flanges are always accurate

Press brake: Gauging

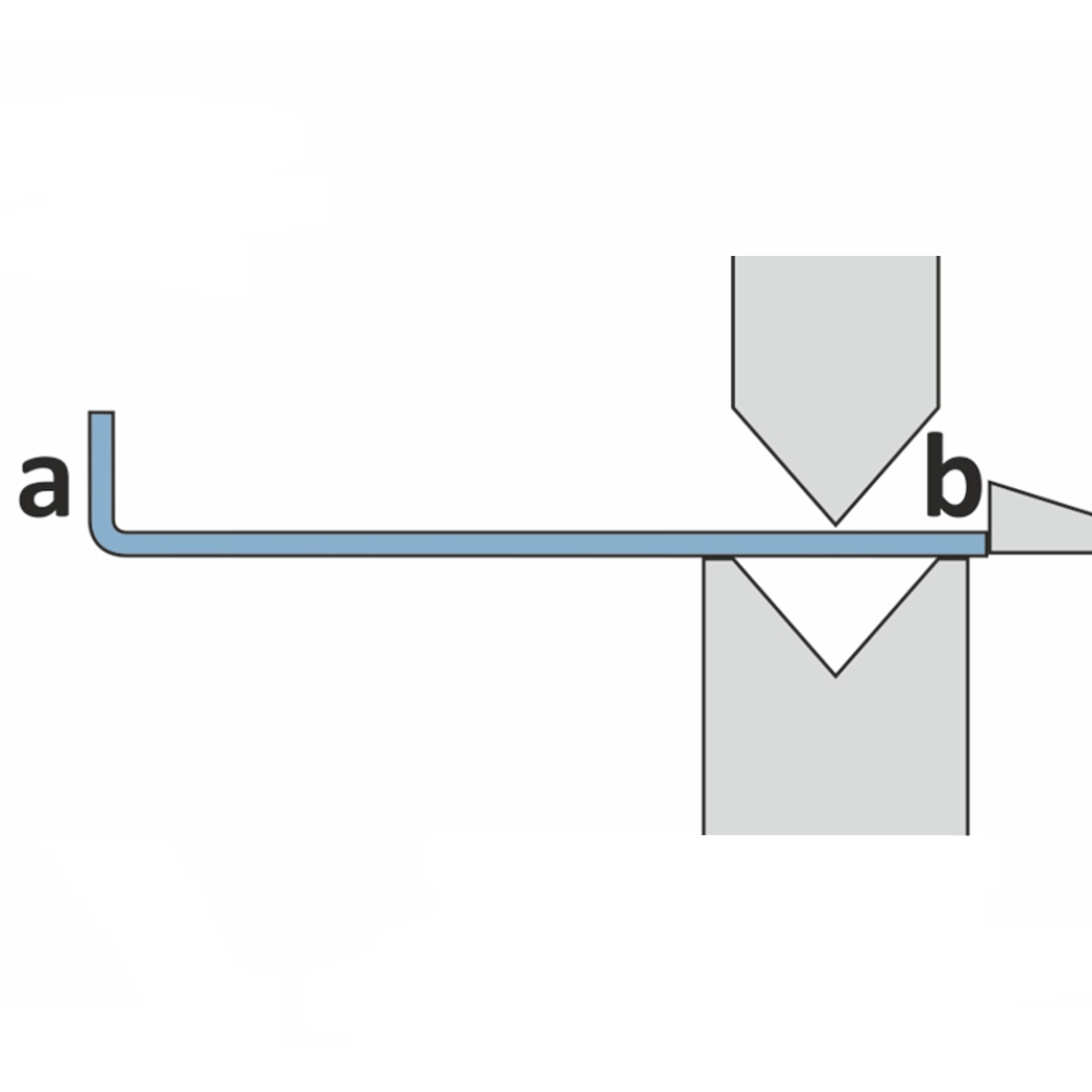

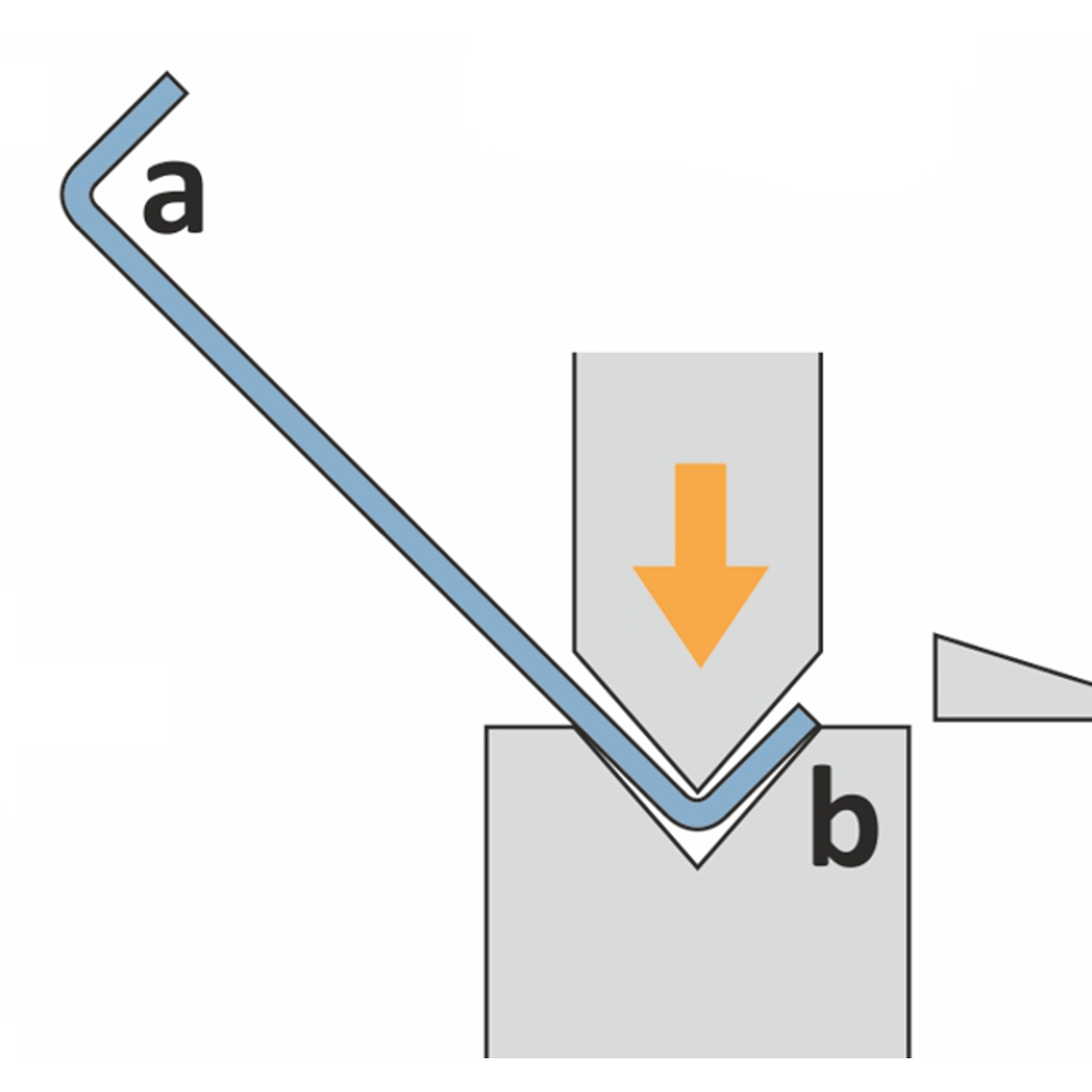

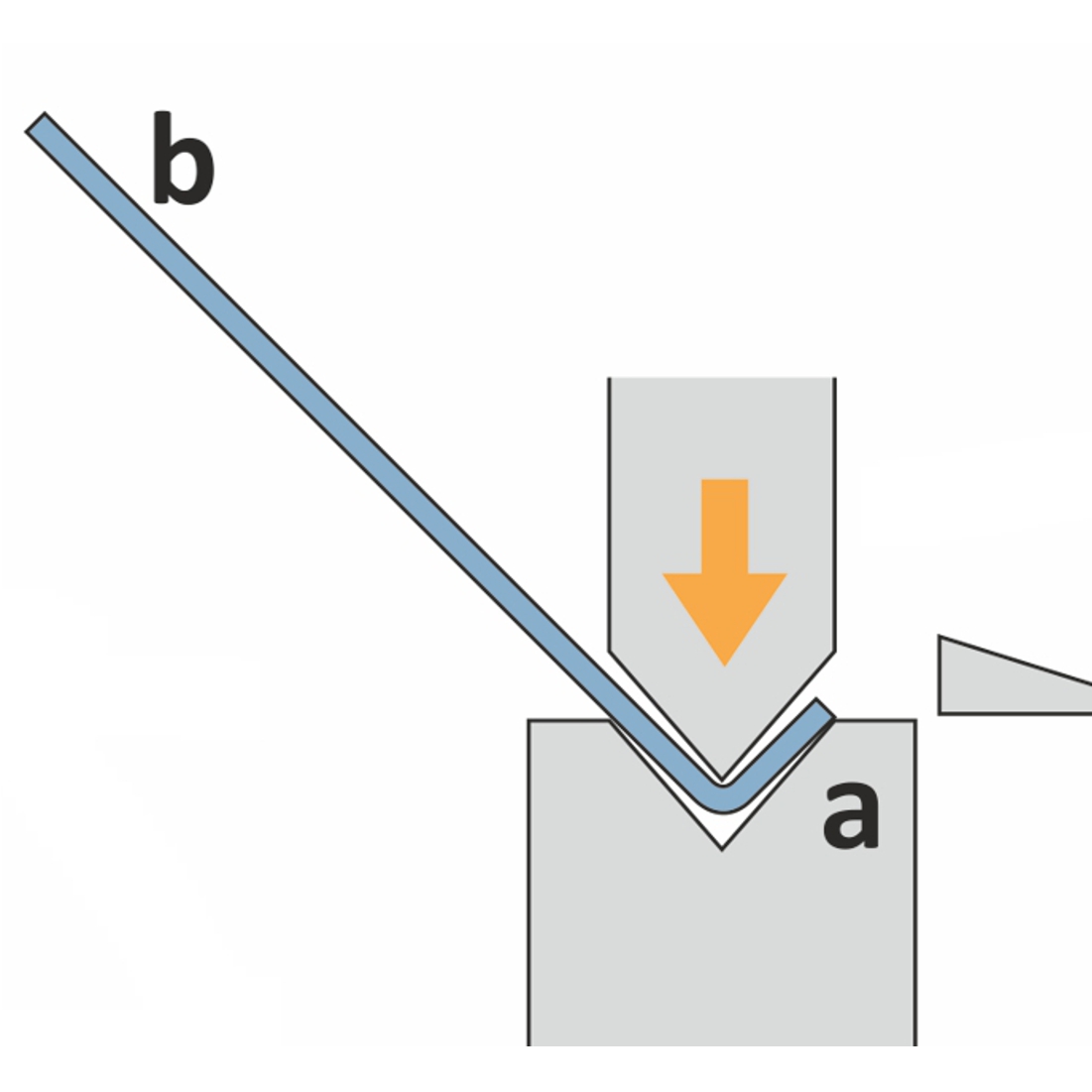

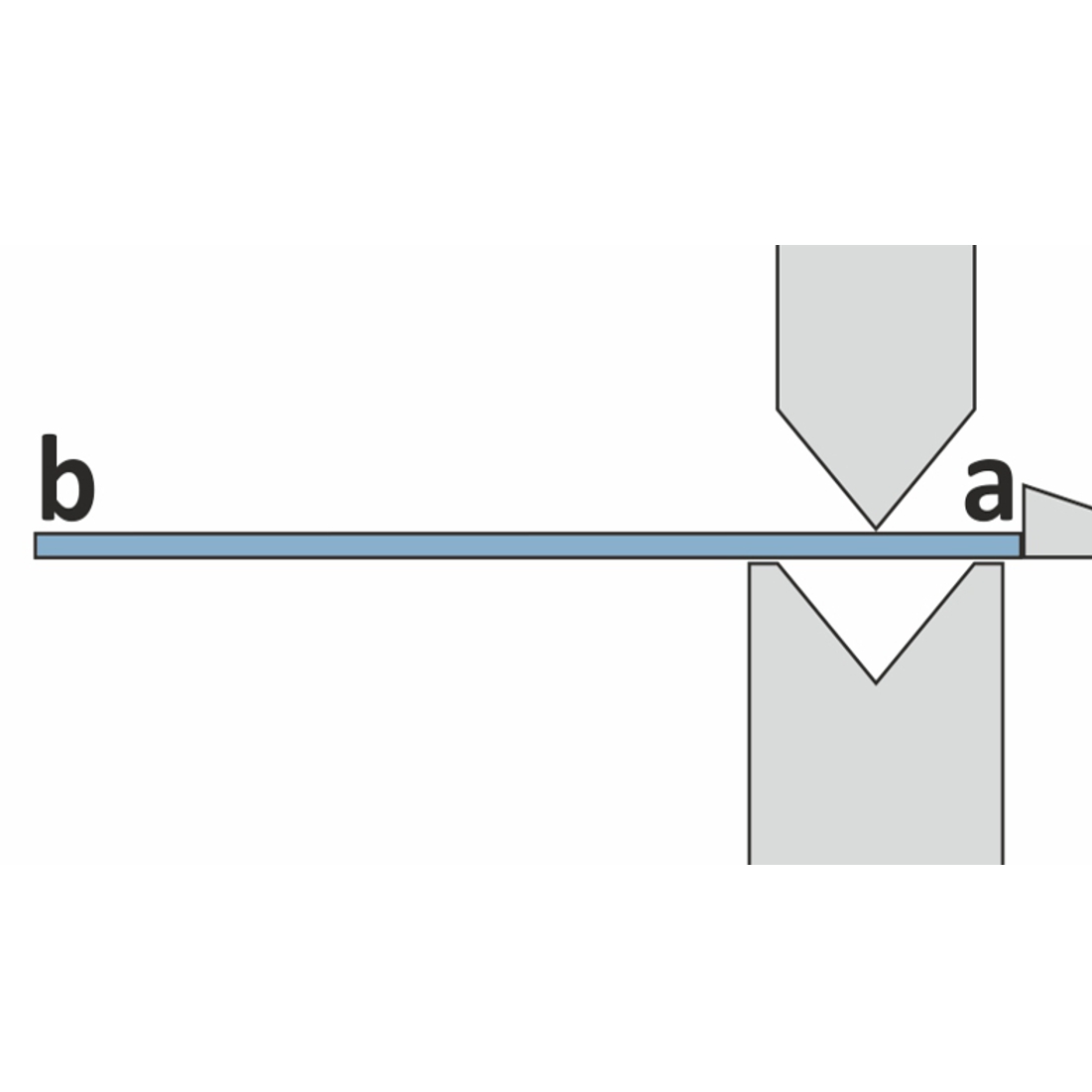

Press brakes normally gauge the short flange. The long flange protrudes from the machine.

Gauging the short flange

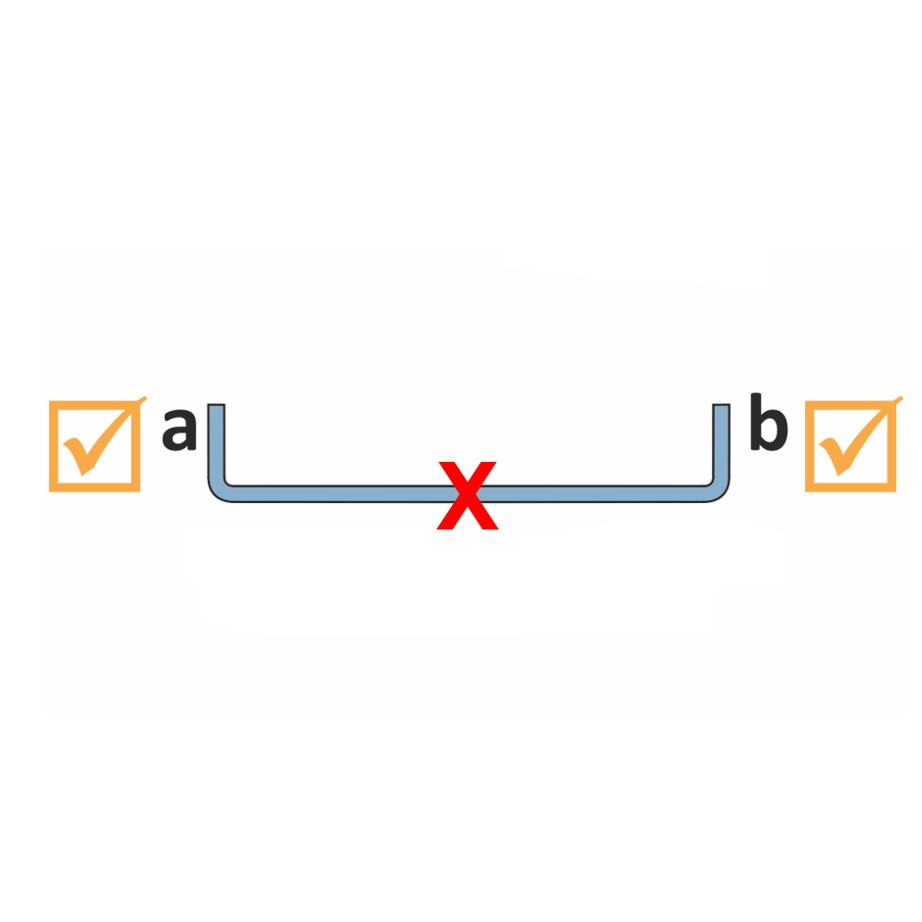

Blanks tolerances show up in the overall dimensions of the finished part
These are usually the critical part dimensions for a perfect fit in the assembly

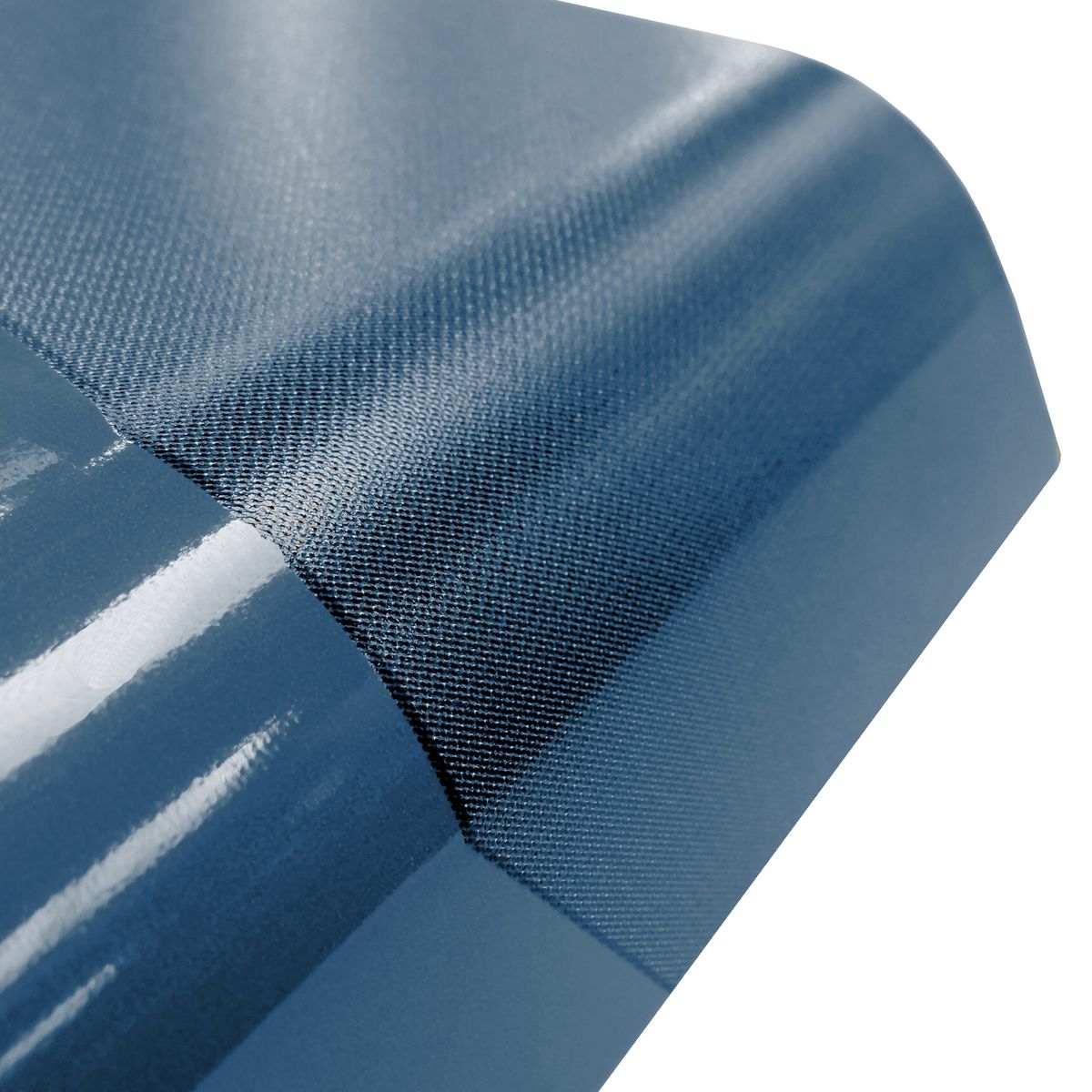

Folding: Sensitive material surfaces

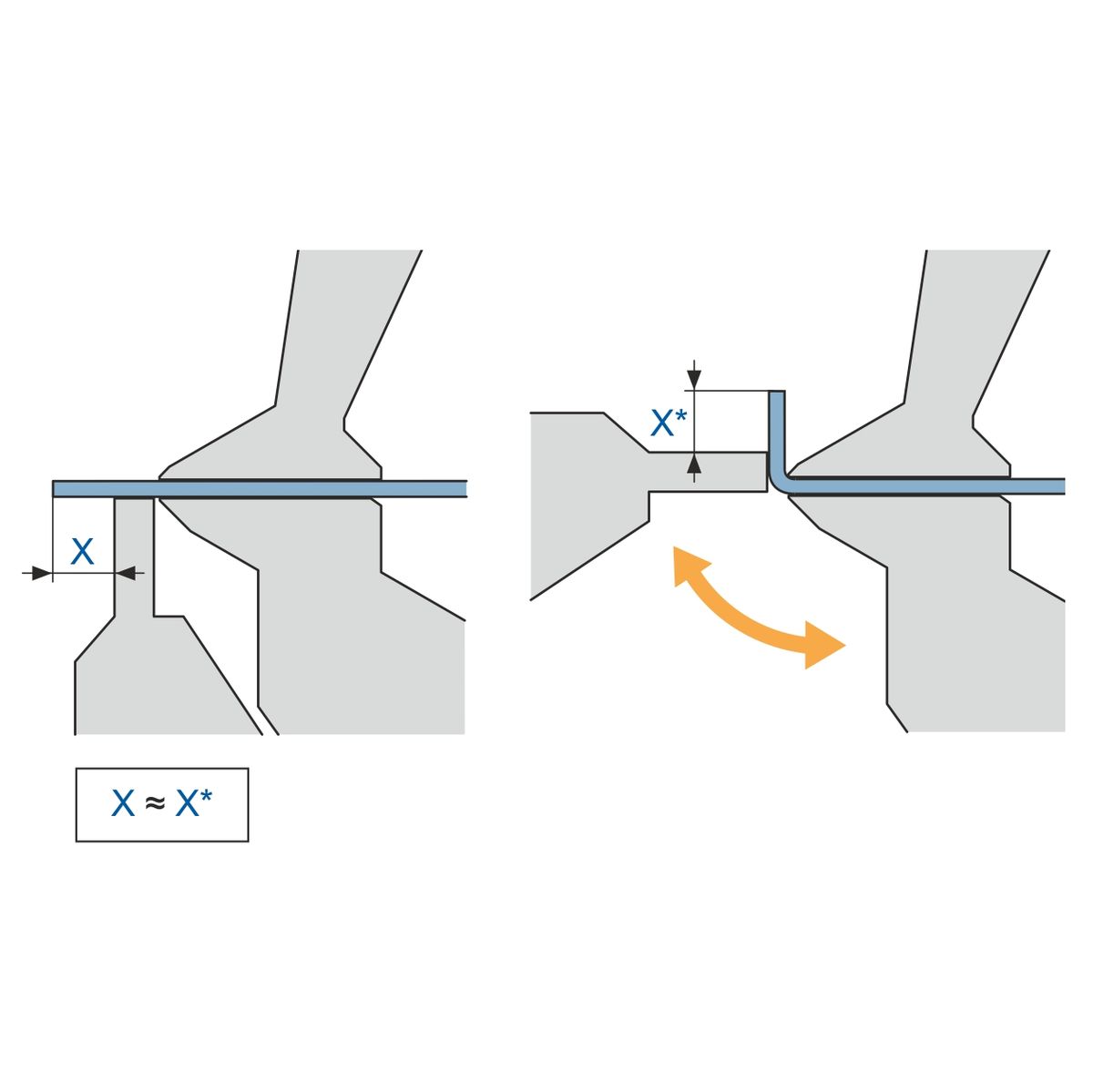

Folding reduces the sliding area of tools on the material surfaces to a minimum, or completely eliminates it on some machines (Multibend-Center, ProfileCenter).

No scratches on the material surface
Ideal for stainless steel or coated sheets

Press brake: Sensitive material surfaces

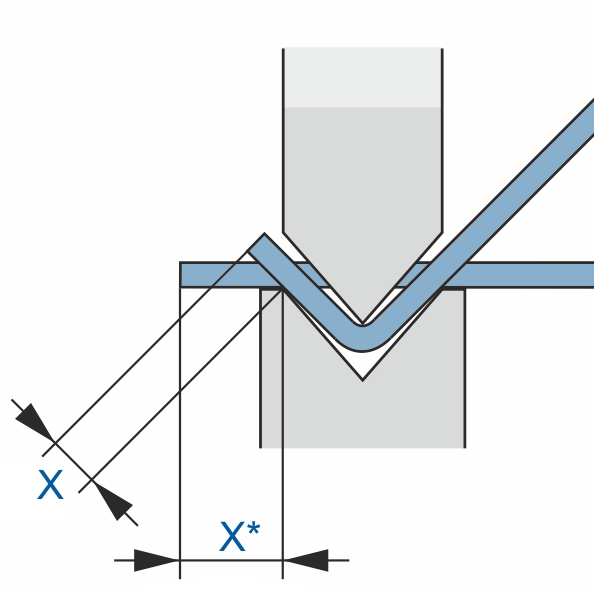

Press brakes draw the material over the edges into the “V” die. The long sliding distance is shown results in scratches on the outside of the sheets.

Significantly visible scratches on the sheet
Not ideal for sensitive materials

Folding: Tool wear

As there are only very slight relative movements between the tool and the material surface, the tooling shows no abrasion wear even after years of use.

No wear on the tools
Low maintenance costs
Precision parts even after years of operation

Press Brake: Tool wear

The long sliding distances over the “V” die edges lead to wear of the tools.

Tools must be replaced from time to time
Gradual deterioration of bend results
Programs need to be readjusted

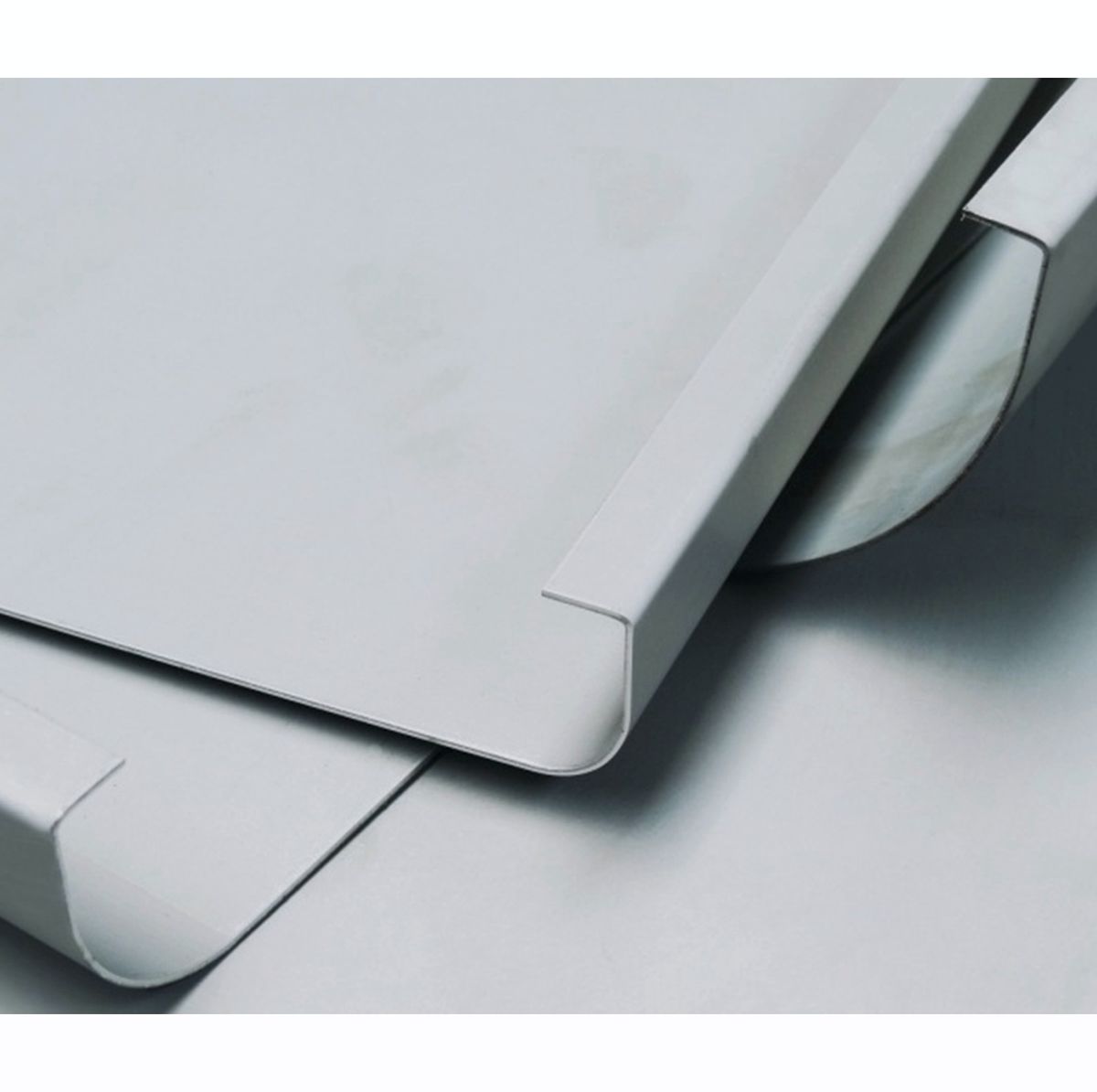

Folding: Bending radii

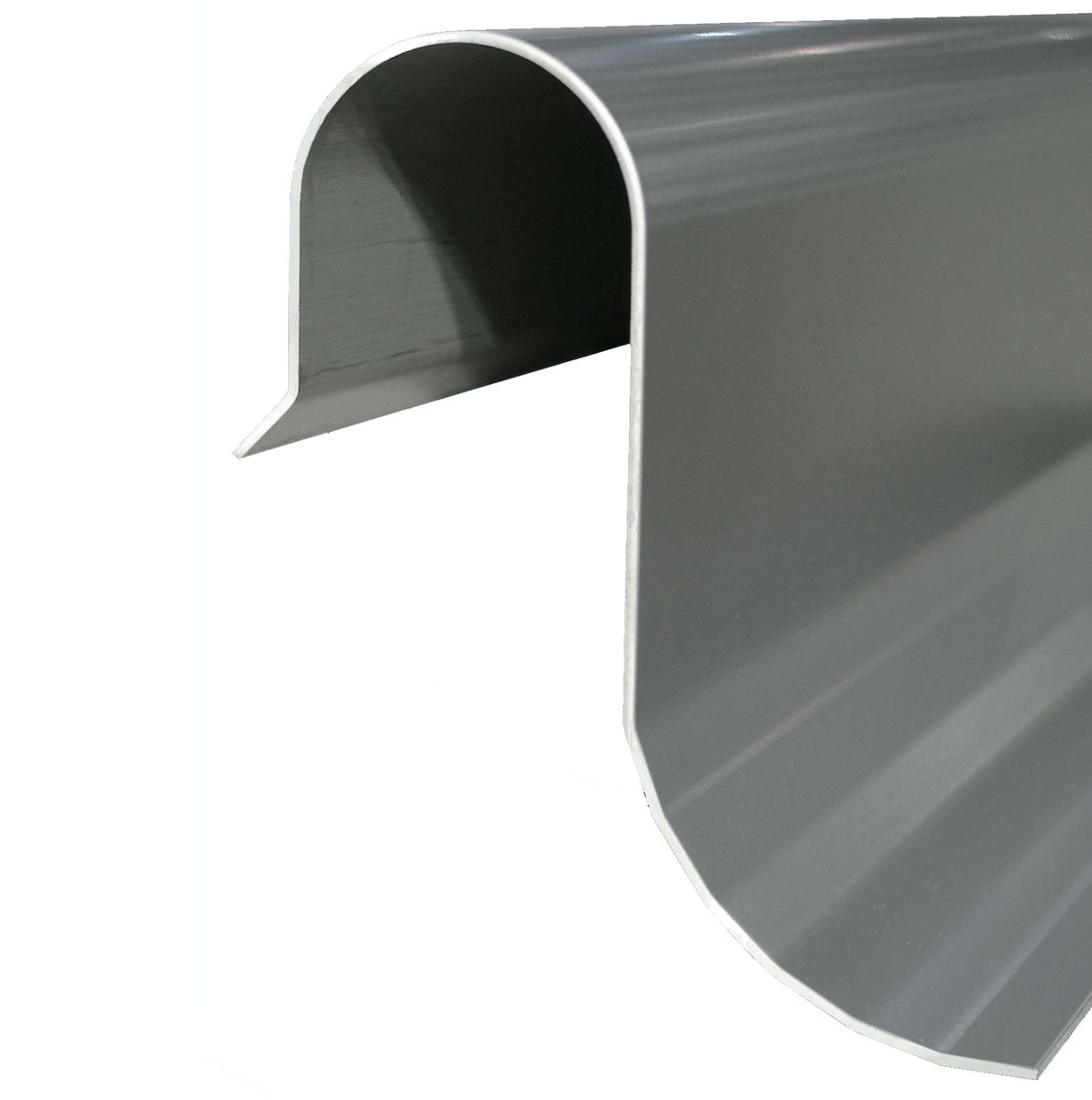

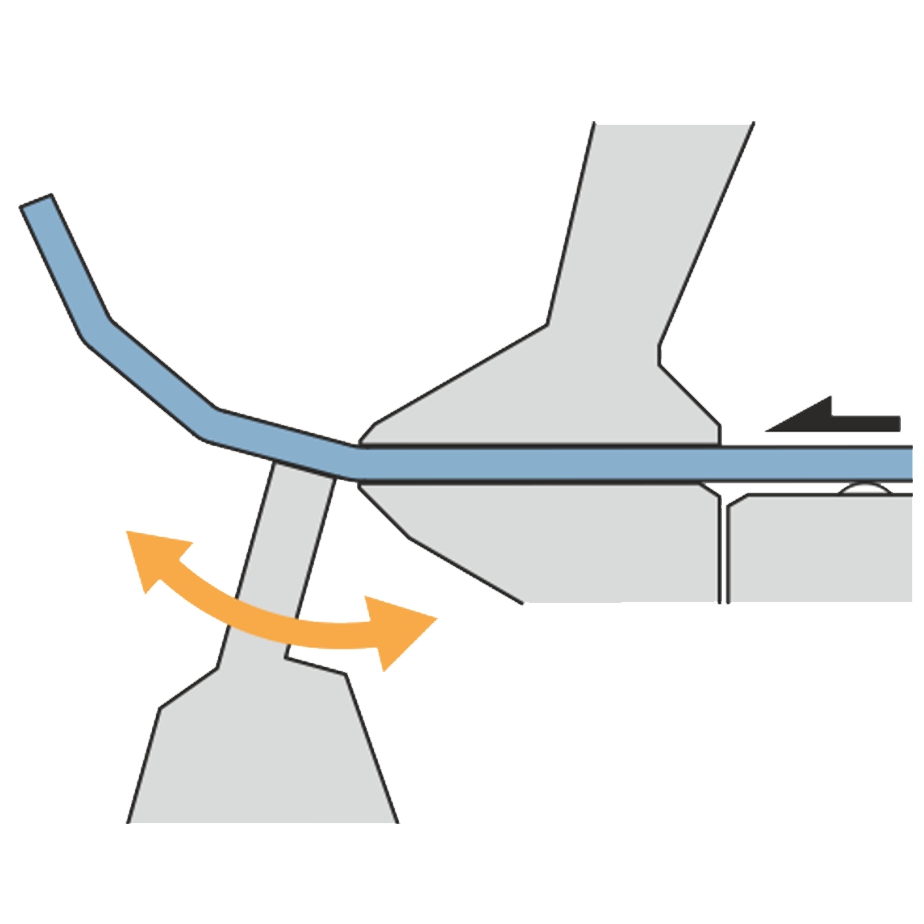

On folding machines, a radius can be easily created of short bending segments. By using small steps the outside of the radius will be very smooth and the individual steps will not be visible.

Creation of any radius without special tools
Bending steps not visible on the outside
Part rests on the table
Fast bending cycles

Press brake: Bending radii

Creating a radius with bending steps on a press brake is quite difficult, as the sheet moves upwards at each step.

Gauing of the parts is difficult
Very well trained operators required
Very long cycle times

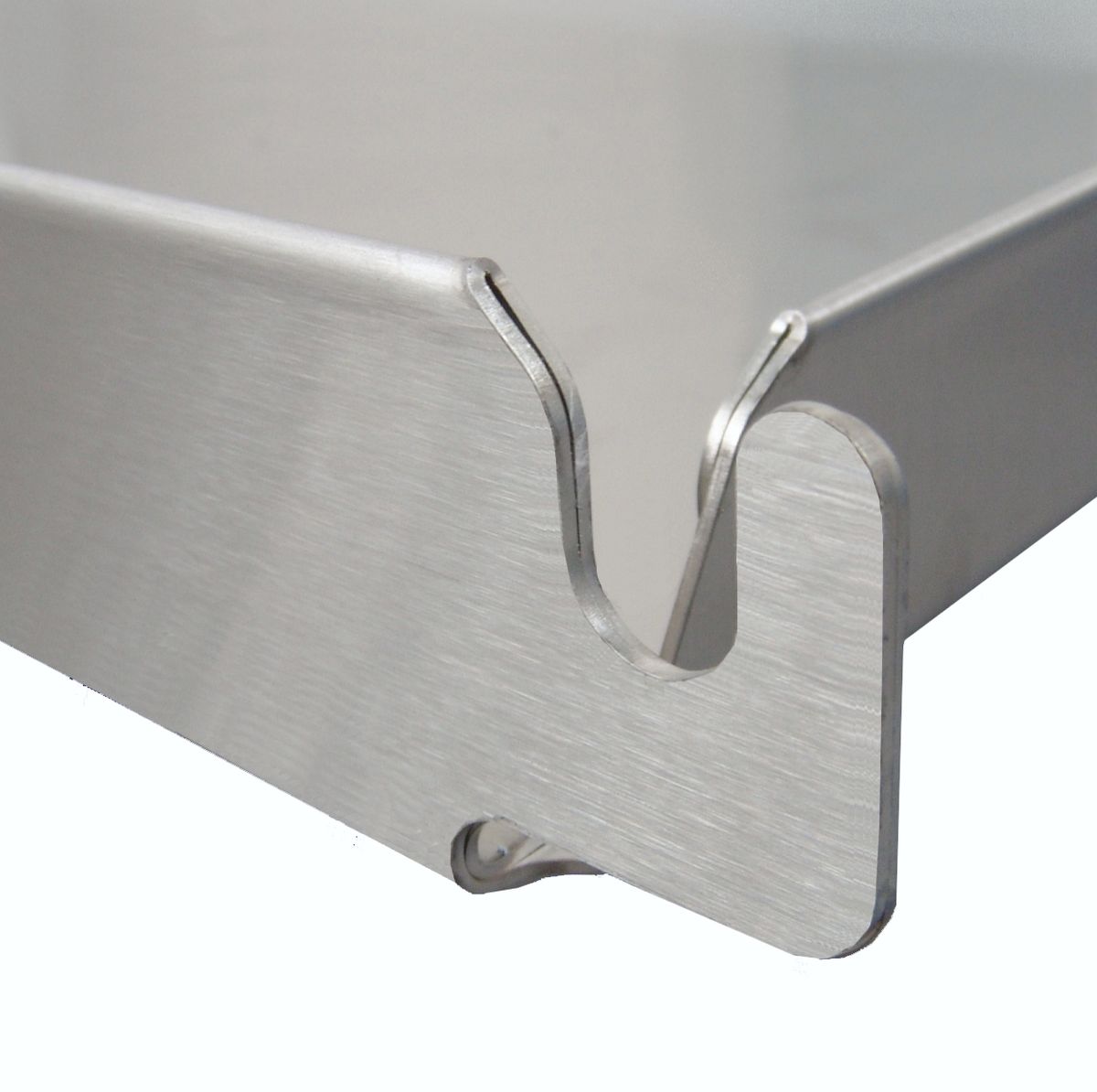

Folding: Bending hems

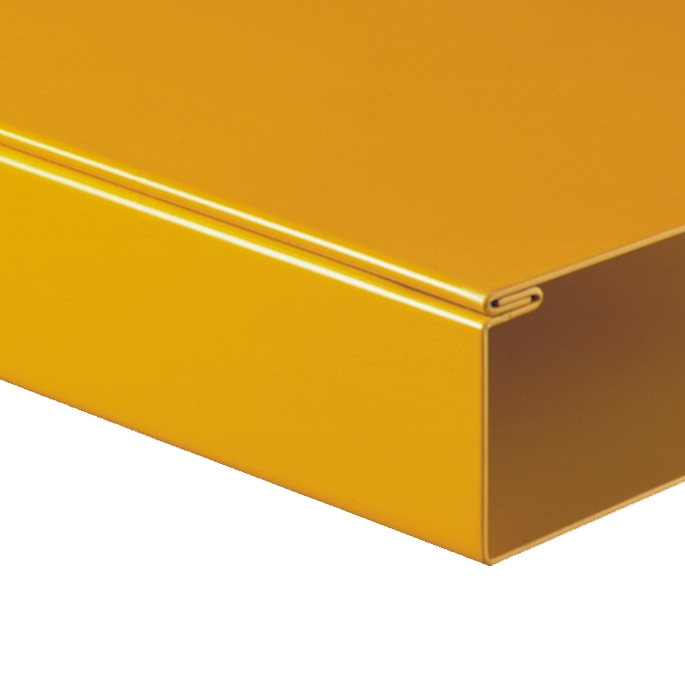

Folding does not require special tools for hemming.

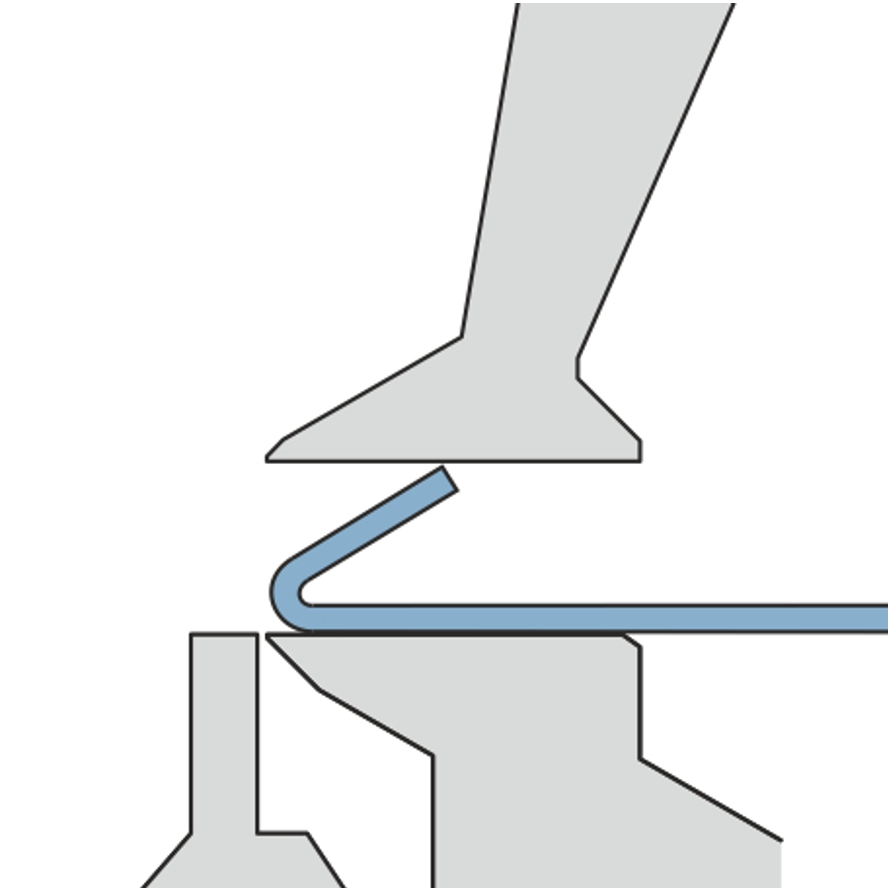

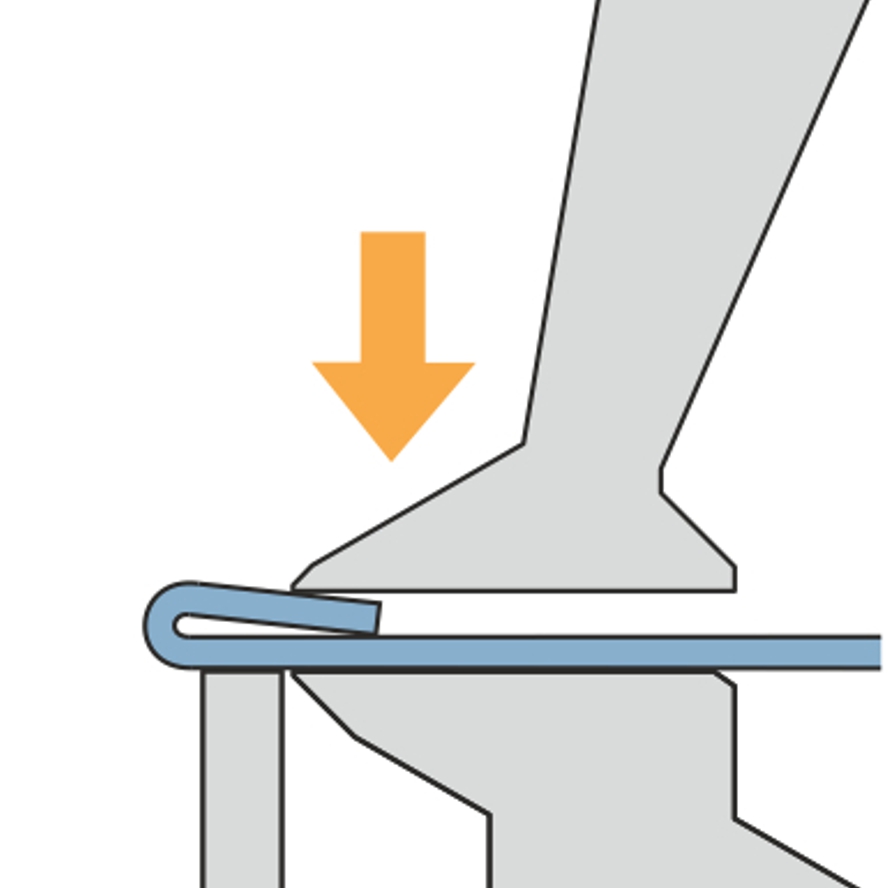

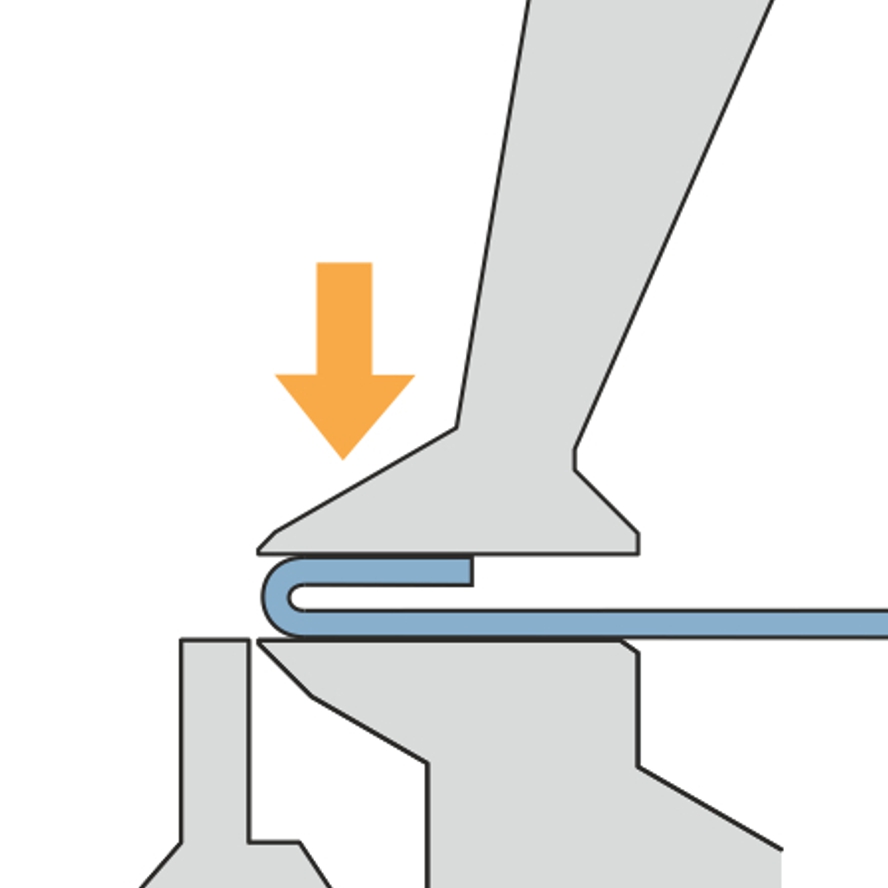

Open, closed or tear-drop hems can be created

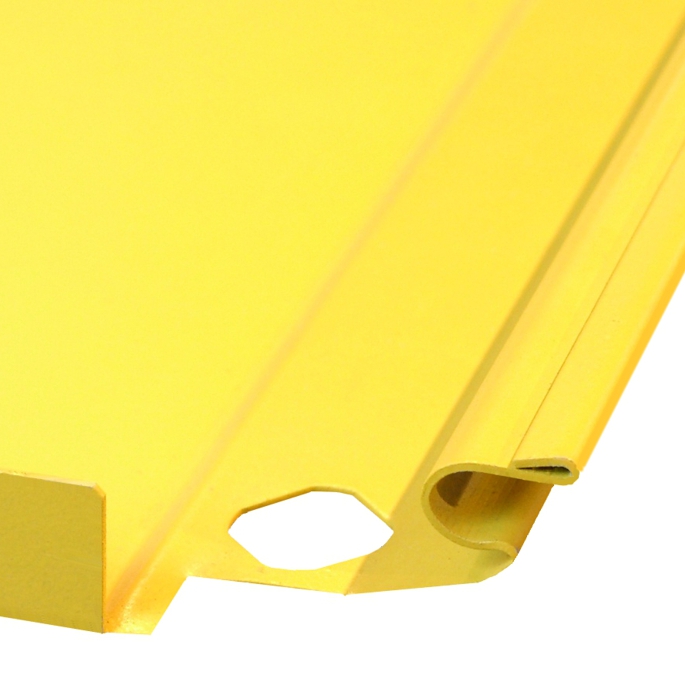

Applications: Increased stiffness, protective edges, part connections

Press Brake: Bending hems

Press brakes use special tools for hemming.

Higher tool costs
Extensive lifting of the part during pre-bending

The post Comparison: Folding & Press Brakes appeared first on Sheetmetal Machinery Australia.

Edge rounding and its effects on coating systems

Sheetmetalmachinery — Tue, 25 Jun 2019 00:56:58 +0000

The total chain is only as strong as its weakest link. This statement obviously applies to everything. All coating systems can be tested among the most extreme conditions, but why do some systems not meet these conditions. For various applications, a particular coating system is recommended. For example, a coating system which is placed in an outdoor installation, on the coast, will be subject to different demands than a coating system which is used in a dry environment.

One-, two- or multi-layer systems are therefore always applicable. The obtained layer thickness and the applied coating are therefore always the protective factors of the underlying metal. With powder coating, it is no problem at all to inject 80 microns. For example, one operation on a flat surface. On these surfaces than normally occurs no corrosion. The biggest problems always arise from the sharp edges and corners. When these sharp edges and corners are not rounded enough or deburred, this will always be the weakest link of the entire coating system.

An sharp edge or corner is subject to insufficient film thickness, and thus this is insufficient protection. This is particularly important for applications such as architectural perforated panels, these panels will have to meet certain conditions. All edges and corners should be rounded with a radius of at least 0.5 mm. The perforation holes should be as large as possible, most preferably not smaller than 10 mm. When the starting material meets these requirements, it will always have a two-layer coating system in order to achieve sufficient edge coverage and therefore protection.

For deburring and edge rounding solutions visit the link below.

Click here to view the range of Q-Fin solutions.

Q-Fin is a company that has perfect finishing and deburring machines. This Dutch manufacturer develops and builds machines for deburring, grinding and finishing of metal parts. Suitable for stainless steel, aluminium, steel and various plastics their is a solution for every requirement.

The post Edge rounding and its effects on coating systems appeared first on Sheetmetal Machinery Australia.

Austech 2019 – Our biggest yet!

Sheetmetalmachinery — Mon, 08 Apr 2019 01:32:38 +0000

Once again Austech 2019 will open its doors to showcase the world’s leading-edge machine tool technology.

At Austech 2019 Sheetmetal Machinery Australia will showcase the latest SafanDarley E-Brake Ultra 130T-4100 with E-Bend L Blue laser angle measurement system. Proven around the world, the range of SafanDarley electric press brakes offer industries the most advanced features and production benefits. Their unique maintenance free roller drive system is available on press brakes from 35 to 300 tons and working lengths up to 4 meters. Simply put, the SafanDarley E-Brake is faster, more accurate, cheaper to run, cheaper to maintain and more flexible than similar systems. For higher tonnage applications greater than 300 tons, SafanDarley also offer the H-Brake and H-Brake Hybrid.

Also, on display is the RAS XLTBend. This incredibly flexible UpDown folding machine is ideal for large complex parts, such as cassettes, panels and boxes. With revolutionary one-click programming software, small batch sizes can be quickly and efficiently created. Processes such as tool setup, part positioning and bending sequence are all automatically generated on the control. The hybrid gauging system with vacuum grippers allows for multiple bends to be performed automatically without operator intervention.

Both the SafanDarley press brakes and RAS XLTbend include the latest offline programming software. Enabling smaller batch sizes and streamlining of manufacturing processes.

Additionally, the Krasser Centurio slitting and coil handling system will be available for viewing and demonstrations. This completely automated slitting, blanking and coil handling system has proven itself in the roofing industry. Coils are transported to the slitting machine automatically and fed into the machine without manual intervention. Features such as the roller shear for partial cutting and automatic labelling, aid in reducing scrap and optimising workflow. Coil weight tracking and barcoding enables a holistic view of your stock and downstream processes. All parts are cut to size, labelled and ready for folding, roll forming etc.

Finally, the range of Q-Fin deburring, grinding and edge rounding machines will be on display. With the ability to operate up to 5 times faster than similar machines and with the combination of possible finishes, the Q-Fin range presents itself as an incredibly efficient system. Models on display include the F1200, F200, WES6000 and TopGrinder.

Sheetmetal Machinery’s extensive machinery range includes products from Europe’s best machine manufacturers. Demonstrations will be running throughout the week of Austech 2019.

We look forward to seeing new and existing customers at stand 800 & 870.

Exhibition registration can be made using the following link: http://amtil.com.au/Austech/

The post Austech 2019 – Our biggest yet! appeared first on Sheetmetal Machinery Australia.

Visiting EuroBlech 2018?

Sheetmetalmachinery — Tue, 11 Sep 2018 02:35:58 +0000

EuroBlech 2018 is fast approaching.

From 23 – 26 October 2018, the 25th International Sheet Metal Working Technology Exhibition will open its doors again in Hanover, Germany. Among sheet metal working specialists, the show is renowned as the key marketplace to find the latest equipment and services in all areas of sheet metal working. Visitors to this year’s show can expect the complete spectrum of intelligent solutions and innovative machinery for modern production in sheet metal working which are being presented in form of numerous live demonstrations at the exhibition stands.

The exhibition presents the entire sheet metal working technology chain: sheet metal, semi-finished and finished products, handling, separation, forming, flexible sheet metal working, joining, additive manufacturing, welding and surface treatment, processing of hybrid structures, tools, quality control, CAD/CAM/CIM systems and R&D. At EuroBLECH, some 1,550 exhibitors from 40 countries present their cutting-edge technology live to a worldwide audience of some 60,000 trade visitors.

Many of our suppliers will be attending. EuroBlech is a great opportunity to see some of the latest machinery and technology.

A representative from Sheetmetal Machinery Australia will be attending EuroBlech 2018. If you would like a demonstration at any of our suppliers stands or additional information please feel free to contact us.

Below you will find all the details for our suppliers at the show.

ACF engineering and Automation GmbH
Hall 13 Stand C49
https://www.euroblech.com/2018/exhibitor-profile/?e=1233&lang=en§ion=exhibitor-list

Boschert GmbH + Co.KG
Hall 11, Stand A26
https://www.euroblech.com/2018/exhibitor-profile/?e=193&lang=en§ion=exhibitor-list

Coastone
Hall 12, Stand D86
https://www.euroblech.com/2018/exhibitor-profile/?e=235&lang=en§ion=exlist

Gecam
Hall 11, Stand A08
https://www.euroblech.com/2018/exhibitor-profile/?e=411&lang=en§ion=exlist

Krasser GmbH
Hall 27, Stand K32
https://www.euroblech.com/2018/exhibitor-profile/?e=575&lang=en§ion=exlist

RAS Reinhardt Maschinenbau GmbH
Hall 11, Stand B154
https://www.euroblech.com/2018/exhibitor-profile/?e=798&lang=en§ion=exlist

Resato International
Hall 12, Stand B19
https://www.euroblech.com/2018/exhibitor-profile/?e=806&lang=en§ion=exlist

SafanDarley B.V.
Hall 14, Stand H14
https://www.euroblech.com/2018/exhibitor-profile/?e=835&lang=en§ion=exlist

SPIRO International S.A
Hall 13, Stand B200
https://www.euroblech.com/2018/exhibitor-profile/?e=913&lang=en§ion=exlist

Q-fin B.V.
Hall 12, Stand H116
https://www.euroblech.com/2018/exhibitor-profile/?e=792&lang=en§ion=exlist

WILA B.V.
Hall 11, Stand A101
https://www.euroblech.com/2018/exhibitor-profile/?e=1046&lang=en§ion=exlist

The post Visiting EuroBlech 2018? appeared first on Sheetmetal Machinery Australia.

In Stock – SafanDarley Ultra 130-3100

Sheetmetalmachinery — Tue, 11 Sep 2018 01:58:27 +0000

Now in stock is the latest generation E-brake from SafanDaley, the Ultra series.

The new generation of E-Brake adds important new advantages to the E-Brake technology, which has already proven itself all over the world. The machines in the 50T–130T range are built according to a modular concept that is a new step forward in the efficiency of machine construction. The new design is in line with the design of the larger E-Brakes. The CNC crowning and the dual screen EC20 control are important characteristics. In addition, more options have been added, and the machine can be expanded with a 3D back gauge and E-Bend L Blue laser angle measurement system.

More information and videos can be seen on our product page by clicking here

The post In Stock – SafanDarley Ultra 130-3100 appeared first on Sheetmetal Machinery Australia.
